Fast-Track Soyuz TMA-08M Crew Arrives at Space Station - UPDATE

The delivery of the Soyuz TMA-08M crew to the International Space Station returns the orbital outpost to six-person capability. Seated are Pavel Vinogradov (left) and Chris Hadfield, with Aleksandr Misurkin, Chris Cassidy, Roman Romanenko and Tom Marshburn standing. Photo Credit: NASA

The delivery of the Soyuz TMA-08M crew to the International Space Station returns the orbital outpost to six-person capability. Seated are Pavel Vinogradov (left) and Chris Hadfield, with Aleksandr Misurkin, Chris Cassidy, Roman Romanenko, and Tom Marshburn standing. Photo Credit: NASA

The second half of Expedition 35—the current multi-month increment of astronauts and cosmonauts to the International Space Station—began in spectacular fashion today, with the blazing night-time liftoff of Soyuz TMA-08M from the Baikonur Cosmodrome in Kazakhstan. Launch occurred at 2:43:22 a.m. local Kazakhstan time on 29 March (8:43:22 p.m. GMT and 4:43:22 p.m. EDT on the 28th), carrying Russian cosmonauts Pavel Vinogradov and Aleksandr Misurkin and NASA astronaut Chris Cassidy into space for a six-month stay aboard the orbital outpost. Within nine minutes, the crew was in orbit, and a busy few hours lay ahead to prepare them for the first “fast-rendezvous” of the ISS era, delivering them to the station in only six hours. Soyuz TMA-08M docked successfully at the space-facing (or “zenith”) Poisk module, slightly ahead of schedule, at 10:28 p.m. EDT (2:28 a.m. GMT on 29 March), and hatches were opened a little over 90 minutes later.

Although same-day rendezvous and docking are nothing new—and America’s three Skylab crews in the early 1970s arrived at their orbital home eight or nine hours after launch—it has been typical during ISS missions to follow a longer profile of around two days, which has proven more economical in terms of propellant expenditure and the demands of orbital mechanics. However, the confines of Russia’s tiny Soyuz capsule are cramped and highly stressful and often serve to exacerbate sensations of nausea and motion sickness. Getting crews to the station soon, though hugely complicated, was considered highly desirable. Writing last year, analyst James Oberg noted that a fast-rendezvous plan had been developed, involving a ballet of between four and six thruster firings to create the right conditions for an early docking. “The destination in space,” wrote Oberg, “must be lined up much more precisely in a narrow ‘slot’ in the sky. With the two-day profile, that destination could be anywhere halfway along the ISS’ round-the-world orbital track … but with the fast-track rendezvous, the target must be maneuvered in advance into a segment of the target’s orbit that is only 20 degrees wide at the time of the spacecraft’s launch.”

The launch vehicle, bearing Soyuz TMA-08M, is erected to a vertical position at Baikonur Cosmodrome on 26 March 2013. Photo Credit: NASA

The launch vehicle, bearing Soyuz TMA-08M, is erected to a vertical position at Baikonur Cosmodrome on 26 March 2013. Photo Credit: NASA

In August 2012, Russia’s Progress M-16M—or “48P” in ISS Program-speak—completed a docking with the space station, just six hours after liftoff. It was noted at the time that at least one of the Soyuz missions for 2013 might follow a similar profile, and the TMA-08M will tonight become the first crew to do just that. “It’s a really exciting and interesting concept to do,” explained Chris Cassidy in his pre-flight NASA interview. “Typically, we’ll launch on one day, go to bed, be up that whole second day with a few tasks and activities, but not much significant activity, and then go to sleep again and wake up and rendezvous on that third day. We’ll scrunch that whole timeline down into about a six-hour period. The interesting thing from a human point of view is we don’t have time to take off our space suits, so we’ll be strapped into our seats for the whole duration of that six-hour period, plus the pre-launch activities. It’ll be a long day and a lot of time in the suits.”

A long day, indeed. Vinogradov, Misurkin, and Cassidy were helped into their Sokol launch-and-entry suits about four hours ahead of today’s liftoff and were in their specially-contoured seats aboard the Soyuz TMA-08M descent module approximately two hours later. In those final hours, their launch vehicle—a descendent of Sergei Korolev’s R-7 rocket, an early version of which carried Yuri Gagarin into space—underwent its final checks, culminating in the completion of fueling and the implemention of the flight program software. At one stage, Jon Bon Jovi’s song “It’s My Life” was piped into the Soyuz cabin. Ten minutes before launch, the three men were instructed to close their visors. A minute before liftoff, the rocket was transferred to internal power supplies, and at T-10 seconds the engine turbopumps reached full speed. By five seconds, the engines themselves had reached maximum thrust, leading to the retraction of the launch pad’s fueling tower and an on-time liftoff into the darkened Baikonur sky.

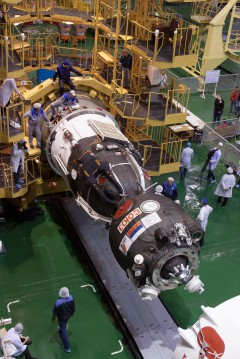

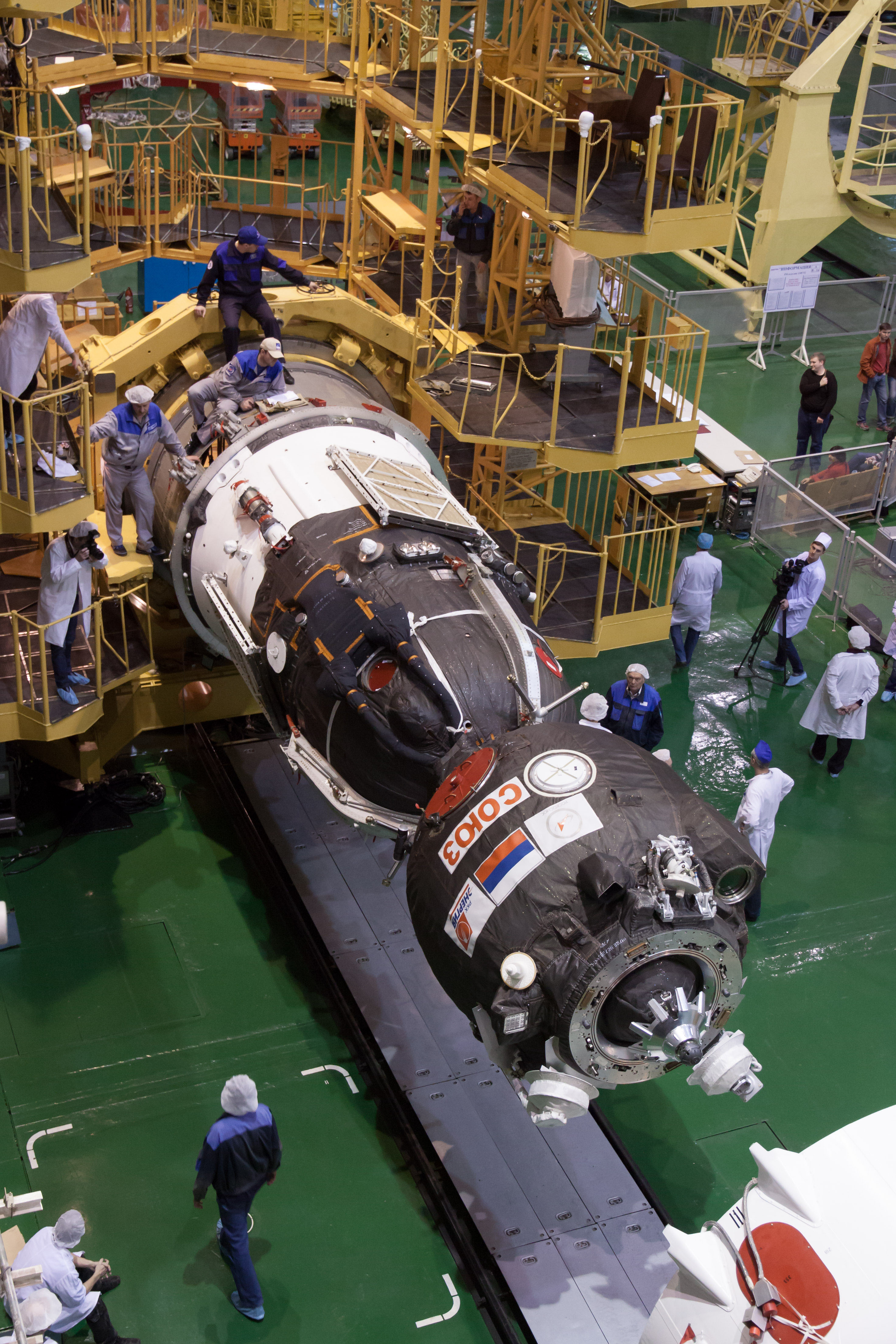

The Soyuz TMA-08M spacecraft, shown here during final closeout activities at Baikonur, will deliver Vinogradov, Misurkin and Cassidy to the space station just six hours after launch. Photo Credit: NASA

The Soyuz TMA-08M spacecraft, shown here during final closeout activities at Baikonur, will deliver Vinogradov, Misurkin, and Cassidy to the space station just six hours after launch. Photo Credit: NASA

Within a minute of clearing the tower, the rocket was already traveling at more than 1,100 mph, and at T+118 seconds the four tapering strap-on boosters were jettisoned, as planned, leaving the core alone to complete the push into low-Earth orbit. By the two-minute mark, Vinogradov, Misurkin, and Cassidy had surpassed 3,350 mph, and, shortly thereafter, the escape tower and launch shroud separated, exposing Soyuz TMA-08M to vacuum for the first time. Four minutes and 58 seconds after leaving the desolate steppe of Central Asia, the core booster separated at an altitude of 105.6 statute miles and the third and final stage ignited, boosting the Soyuz to a velocity of more than 13,420 mph. By the time the third stage separated, nine minutes into the flight, Vinogradov, Misurkin, and Cassidy were in space and could begin the process of deploying their craft’s antennas and solar arrays. At the point of orbital insertion, Soyuz TMA-08M trailed the ISS by about 2,000 miles.

In the minutes ahead of launch, Expedition 35 crewmen Chris Hadfield, Roman Romanenko, and Tom Marshburn hustled to the space station’s multi-windowed cupola and reported that they were able to see the ignition and ascent phase. In a few hours’ time, if all goes well, they will welcome three new additions to their crew.

The fast-rendezvous plan then kicked into action, involving two maneuvers within the first orbit and eight additional “burns” over the following five hours. Despite the confined nature of their Sokol suits, the three men had the opportunity to move around the cabin, which is rendered somewhat more spacious in the absence of gravity. However, for Cassidy, a U.S. Navy officer and former SEAL, the lack of comfort in the Soyuz is notable. “The toilet is right next to where you sleep, which are right next to your buddy,” he said, “and eating and all; it’s like living for a day in a smart car or a Volkswagen Beetle.” From an operational perspective, the only difference for Cassidy and his crewmates is that the six-hour timeline is much shorter, naturally, than it would ordinarily be, with fewer gaps between discrete activities. The decision to adopt the fast-rendezvous approach for Soyuz TMA-08M was formally agreed by the International Partners last month, but according to ISS Program Manager Mike Suffredini has not yet been approved for all future flights. A decision on whether to adopt it for Soyuz TMA-09M on 28 May—whose crew includes NASA astronaut Karen Nyberg—is expected to be made in April.

Soyuz TMA-08M roars into the darkened Baikonur sky at 2:43 a.m. local time on 29 March (8:43 p.m. GMT and 4:43 p.m. EDT on the 28th), despatching three new crew members toward the International Space Station. Photo Credit: NASA

Soyuz TMA-08M roars into the darkened Baikonur sky at 2:43 a.m. local time on 29 March (8:43 p.m. GMT and 4:43 p.m. EDT on the 28th), despatching three new crew members toward the International Space Station. Photo Credit: NASA

“All the systems of the vehicle are the same, but the work is more intense,” said Pavel Vinogradov, a veteran of two previous long-duration missions, who will be commanding the Soyuz TMA-08M flight to the station. Recently quoted by SpaceflightNow.com, he added that “there are no new systems or modes in the vehicle, but the co-ordination work of the crew should be better.” Overall, Vinogradov feels that although it will be hard on the crew in the first few hours of pre-launch activities and orbital flight, it offers the benefits of greater efficiency in the long term. Another tangible benefit for the Russians is that a full complement of Soyuz controllers will be needed for only a day, as opposed for three days in the previous rendezvous profile. NASA remains cautious, however, and has expressed concerns over the technical difficulty of the orbital maneuvers, in such rapid-fire succession and so soon after launch, plus the crew’s comfort and workload. In his NASA interview, Cassidy acquiesced that the ultimate decision “probably will be made by Roscosmos … but certainly what we learn will be passed on to the other crews.”

Upon arrival at the ISS, one of the first tasks for Vinogradov, Misurkin and Cassidy was to shed their uncomfortable Sokol launch and entry suits. At 12:10 a.m. EDT (4:10 a.m. GMT) on 29 March, following standard pressurization and leak checks, the hatches between Soyuz TMA-08M and the station were opened and the new arrivals were engulfed in bear hugs from resident Expedition 35 crewmen Chris Hadfield, Roman Romanenko and Tom Marshburn…who are celebrating their own 100th day in space today. They were launched from Baikonur last December and will return to Earth in mid-May, leaving Vinogradov, Misurkin, and Cassidy as the first half of the next increment, Expedition 36.

Russia achieves a new national record on this mission, for Vinogradov will become the oldest cosmonaut ever launched into space. He will turn 60 on 31 August, a few days before his scheduled return to Earth; this slightly eclipses the previous Russian record-holder, Valeri Ryumin, who was 58 years old when he flew to Mir aboard shuttle mission STS-91 in June 1998. Vinogradov flew long-duration expeditions to Mir and the ISS, most recently in 2006, and the chance to return to the strange microgravity environment is something he particularly wants to savor. “People who were on-board the station,” he explained in a NASA interview, “feel that it’s their second home, and it will be like coming home for me. And, of course, it’s larger. The station has expanded, it’s now beautiful and big.” Unfortunately, Vinogradov is not the oldest person ever to occupy the ISS: that record is currently held by “space tourist” Dennis Tito, who was 60 years and 8 months old at the time of his visit to the space station in April 2001.

The arrival of Vinogradov, Misurkin, and Cassidy will kick off a busy few months for the ISS Program, highlighted by numerous spacewalks from both the Russian Operating Segment (ROS) and the U.S. Operating Segment (USOS). The first excursion is tentatively planned for 19 April and will involve Vinogradov and fellow Expedition 35 cosmonaut Roman Romanenko. When he floats outside the Pirs airlock, Vinogradov will become the world’s oldest spacewalker, soundly beating the previous record-holder, Story Musgrave, who was 58 years old when he supported three EVAs to service the Hubble Space Telescope in December 1993. In his NASA interview, Vinogradov spoke briefly about the tasks he and Romanenko will perform. “It’s going to be for the installation of special sensors and antennas that show the state of the electromagnetic field around the station,” he explained. The cosmonauts will also install material-exposure sample trays and equipment to support the docking, in early June, of Europe’s fourth Automated Transfer Vehicle (ATV-4, named in honor of physicist Albert Einstein).

Twelve hours after walking in Baikonur, Soyuz TMA-08M crewmen Chris Cassidy, Pavel Vinogradov and Aleksandr Misurkin should float into their orbital home for the next six months. Photo Credit: NASA

Twelve hours after walking in Baikonur, Soyuz TMA-08M crewmen Chris Cassidy, Pavel Vinogradov, and Aleksandr Misurkin should float into their orbital home for the next six months. Photo Credit: NASA

The EVA will be the first of six, throughout the summer months, with three other ROS spacewalks currently planned for 26 June, 15 August, and 19 August. These three will be performed by Misurkin and Fyodor Yurchikhin—the latter of whom is scheduled to arrive at the ISS aboard Soyuz TMA-09M in late May—and according to Vinogradov will be conducted in support of the anticipated (and long-delayed) Nauka multi-purpose laboratory module, currently scheduled for launch on 11 December 2013. “We will have to provide power lines and to transition the power lines from the USOS to the ROS,” he said, “and it’s not a short route to attach them, to lay the cables for data transfer as well, and to install data trusses, data buses, and … scientific equipment on the outer shell of the station.” This equipment is expected to include a pair of Canadian-built telescopes. “How they decide who performs the EVAs is very hard,” Vinogradov concluded. “It’s very hard to prepare a person to perform the EVA; it’s very hard to measure and spread out the tasks between the crew members and the load between the crew members.”

For the first six weeks of their mission, Vinogradov, Misurkin, and Cassidy will work as part of Expedition 35, alongside Hadfield, Romanenko, and Marshburn. That will change when Hadfield and his team return to Earth aboard their Soyuz TMA-07M spacecraft on 14 May, after 146 days in orbit. Vinogradov will take command of the ISS and the first half of the Expedition 36 increment will begin. Three new crew members—Soyuz TMA-09M’s Fyodor Yurchikhin, Karen Nyberg, and Italian astronaut Luca Parmitano of the European Space Agency (ESA)—will arrive to restore the station’s six-person capability at the end of May. Parmitano will become the second Italian long-duration resident of the ISS; in ESA mission-naming tradition, his voyage is called “Volare” (“To Fly” in Italian.) With the exception of Nyberg, who is not scheduled to perform a spacewalk, this new crew will participate heavily in the EVA plan over the summer.

In addition to Yurchikin’s and Misurkin’s spacewalks in June and August, astronauts Cassidy and Parmitano will make at least two EVAs—and perhaps three—in early July. Current projections indicate 2 July and 5 July as the preferred dates, with a third tentatively slated for the 9th. “The number of EVAs,” explained Vinogradov, “will depend on how successful they are … but we don’t want to put too much pressure on the crew and give them time to work at a measured pace.” One of Cassidy and Parmitano’s first tasks will be the relocation of a pair of Heat Rejection Subsystem Grapple Fixtures (HRSGFs) from their current home on the station’s Mobile Base System to the outboard S-1 and P-1 trusses. The HRSGFs, nicknamed “grapple bars,” arrived at the ISS aboard SpaceX’s CRS-2 Dragon cargo craft and were robotically removed from the unpressurized Trunk on 6 March by the 57-foot-long Canadarm2 manipulator arm.

If all goes to plan, Luca Parmitano will become Italy's first spacewalker. Photo Credit: NASA

If all goes to plan, Luca Parmitano will become Italy’s first spacewalker. Photo Credit: NASA

The purpose of the grapple bars is to provide a capability for Canadarm2 to interface with ISS radiator elements, should the need arise to repair or replace them. The astronauts will remove the bars from their Payload Orbital Replacement Unit (ORU) Accommodation (POA) on the Mobile Base System, and Cassidy expects the work to transfer them to their final S-1 and P-1 locations to require the majority of the six-hour EVA. Elsewhere, the starboard Solar Alpha Rotary Joint (SARJ)—a 10-foot-diameter, 2,500-pound bearing, situated between the S-3 and S-4 truss segments—which enables the solar arrays to properly track the Sun, has experienced intermittent difficulties for several years and requires further attention. According to Cassidy, the starboard SARJ has recently shown indications “that it’s taking more current to drive the motor to make them spin, which indicates that maybe there’s some binding or it’s not smoothly spinning around the ring.” The two astronauts will clean and lubricate the SARJ rings, on both sides of the space station, and tend to a Ku-band antenna malfunction and the need to repair a Sequential Shunting Unit.

With the drama of the EVAs keeping the entire Expedition 36 crew busy throughout the summer, Vinogradov and his team will welcome a steady train of visitors, including Russia’s workhorse Progress, Europe’s ATV-4 Albert Einstein in June, and Japan’s Kounotori-4 (“White Stork”) in July-August. Although a precise launch date has yet to be announced, the maiden demo flight of Orbital Sciences’ Cygnus cargo craft should also occur during this timeframe. For Vinogradov, Misurkin, and Cassidy, their return to Earth is tentatively scheduled for 11 September.
