Europe’s Gaia Billion-Object Astronomy Mission Primed for Thursday Launch

Artist's concept of the Gaia mission. Image Credit: ESA
Artist’s concept of the Gaia mission. Image Credit: ESA

After many delays, the European Space Agency (ESA) is ready to launch its ambitious Gaia mission to observe and catalog around 1 billion astronomical objects—or approximately 1 percent of the entire population of our Milky Way Galaxy—on Thursday, 19 December. Liftoff of the $1.2 billion mission is scheduled to occur atop a Soyuz ST-B booster and Fregat-FT upper stage from the Guiana Space Centre in Kourou, French Guiana, at 6:12:19 a.m. local time (9:12:19 a.m. GMT) Thursday. The launch has been delayed since October, due to the need to replace a pair of transponders which Gaia will use to generate timing signals and downlink its science telemetry.

According to an ESA announcement on Friday, 13 December, the spacecraft has been encapsulated within its 37.4-foot-tall (11.4-meter) protective payload fairing, having been loaded last week with propellants to enable it to reach its “Lissajous” orbit around the Earth-Sun L2 Lagrangian Point, a position about 930,000 miles (1.5 million km) beyond the Home Planet, at which the gravitational influences of both celestial bodies meet in balance. After this operation, Gaia was mounted onto the Soyuz adapter and added to the Fregat upper stage. “Meanwhile, the basic assembly of Soyuz,” noted ESA, “the boosters, core stage and third stage, has been completed in its integration building. In the coming days, the Soyuz lower stages and the upper assembly containing Gaia will be transported to the launch pad and mated.” Designated Soyuz Flight VS06, this will be Arianespace’s sixth mission with the Russian-built rocket from French Guiana since its debut in October 2011.

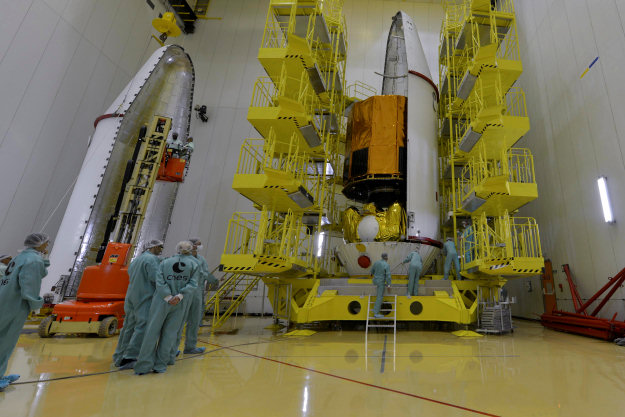

Gaia is encapsulated within its protective payload fairing at the Guiana Space Centre on Thursday, 12 December. Photo Credit: ESA
Gaia is encapsulated within its protective payload fairing at the Guiana Space Centre on Thursday, 12 December. Photo Credit: ESA

Previously scheduled for launch on 20 November, ESA reported in late October that it would delay the mission after “a technical issue was identified in another satellite already in orbit.” It was explained that the issue centered on the need to replace a pair of transponders which Gaia will use to generate its timing signals and downlink science telemetry. Since the 4,480-pound (2,030-kg) spacecraft was already in French Guiana at the time, the transponders were removed and returned to their manufacturer in Europe for replacement, verification, and return to the South American launch site for integration and testing. The transponders are built by Thales Alenia, and, according to, the problem may have been associated with a transponder issue with the Thales-built O3B network of telecommunications satellites, the first four of which were boosted into a medium Earth orbit in June 2013. “Gaia shares some of the components involved in this technical issue,” ESA highlighted, “and prompt notification of this problem has allowed engineers working on the final preparations for Gaia’s launch to take additional precautionary measures.”

In response to the problem, ESA requested Arianespace—the Paris-headquartered launch services organization, which operates the Soyuz, Vega, and Ariane 5 vehicles from Kourou—to postpone the launch. Gaia’s opening “launch window” extended from 17 November-5 December, after which a second window opened on Tuesday, 17 December, and runs through 5 January 2014. These strict windows are governed by the spacecraft’s requirement to reach its “Lissajous orbit” around the Earth-Sun L2 Lagrangian Point.

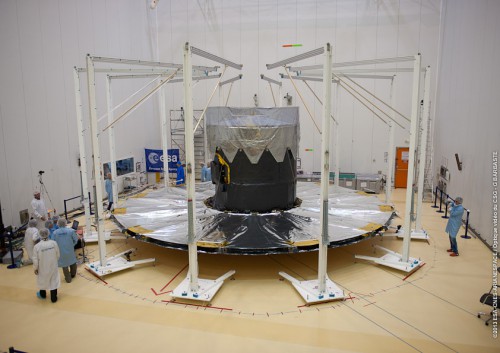

Gaia's 12-piece sunshield is deployed during pre-flight testing. Photo Credit: ESA/CNES/Arianespace
Gaia’s 12-piece sunshield is deployed during pre-flight testing. Photo Credit: ESA/CNES/Arianespace

Gaia is an ambitious mission to observe 1 billion astronomical objects—equating to about 1 percent of the Milky Way—over 5.5 years. As part of ESA’s Horizon 2000 Plus program, it continues the astronomical parallax work undertaken by the 1989-launched Hipparcos mission and will analyze each of its target stars no fewer than 70 times. Gaia’s observations will lead to the creation of precise three-dimensional maps of star motions, yielding detailed physical properties, characterizing luminosities, pegging effective temperatures, and compiling databases of gravitational and elemental compositions. In addition to stars and galaxies, half a million quasars will fall under Gaia’s gaze, together with around 1,000 extrasolar planets and objects within our Solar System, including mysterious “Apohele” asteroids, which lurk between Earth and the Sun.

Of its stellar targets, the distances of about 20 million stars will be measured with an accuracy of approximately 1 percent and another 200 million will be measured with an accuracy of 10 percent. Orbiting the L2 Lagrangian Point—which was also occupied by ESA’s now-defunct Herschel observatory and the recently deactivated Planck space telescope—Gaia will enjoy a very stable thermal environment. Its 35-foot (10-meter) sunshade will be deployed to always face the Sun, thereby cooling its sensitive instruments.

Originally conceived in the early 1990s, following the success of Hipparcos, the Gaia mission steadily progressed through various levels of ESA, gaining Science Programme Committee approval in October 2000 and entering the hardware construction phase—with EADS Astrium as its prime contractor—in February 2006. Its payload includes an astrometry instrument to precisely determine the positions, distances, and proper motions of stellar objects, a photometric instrument to gather spectral data, and a radial-velocity spectrometer to determine the velocity of objects. Fine-pointing of the Gaia spacecraft is achieved partly through its virtual absence of moving parts and its rigid silicon-carbon framework, which will neither expand or contract due to temperature variations in space.
