Dragon Captured Over Canada, CRS-15 Arrives with New Science for Space Station

The SpaceX Dragon CRS-15 cargo ship approaches the ISS while traversing Egypt’s Nile delta on July 2, 2018. NASA astronaut Ricky Arnold captured the Dragon shortly after over Quebec, Canada. Photo: NASA/astronaut Ricky Arnold (@Astro_Ricky on Twitter)

A reused SpaceX Dragon cargo ship, flying its second mission, arrived at the International Space Station (ISS) again this morning, following a stunning dawn launch from Space Launch Complex 40 at Cape Canaveral Air Force Station in Florida on June 29. Soaring at 17,500 miles per hour, more than 256 miles over Quebec, Canada, NASA astronauts Ricky Arnold and Drew Feustel captured Dragon at 6:54 a.m. EDT using the station’s Canadarm2 robotic arm, while NASA astronaut Serena Auñón-Chancellor kept watch over the spacecraft’s systems.

The mission, CRS-15, marks the 15th dedicated cargo mission for SpaceX under their Commercial Resupply Services (CRS) contract with NASA, and brings with it more than 5,900 pounds of research, equipment, cargo and supplies for dozens of investigations aboard the $100 billion orbiting international laboratory.

Following initial capture, ground controllers sent commands to begin robotic installation of the spacecraft to the Earth-facing side of the Station’s Harmony module, followed by attachment firmly to the ISS at 9:52 a.m. EDT, while cruising 255 miles over the Northern Pacific off the west coast of the United States.

Dragon CRS-15 heading to orbit shortly after launching from Cape Canaveral, under a stunning twilight sky shortly before sunrise. Photo: SpaceX

One of SpaceX’s main goals is developing fully reusable vehicles, and this Dragon itself is a re-used spacecraft, having successfully carried out the CRS-9 mission for NASA in 2016. Even the Falcon 9 rocket it launched on was reused, having launched NASA’s TESS exoplanet-hunting spacecraft just two months ago off the same launch pad.

Astronauts are expected to open the hatches between the ISS and Dragon Tuesday morning, after conducting various tasks today in preparation for entering Dragon to unload its payloads, but it is not uncommon for them to be ahead of schedule and do so the same day as its arrival.

Aboard Dragon’s unpressurized “trunk” for CRS-15 is the 1,200-pound (550 kg) ECOsystem Spaceborne Thermal Radiometer Experiment on Space Station (ECOSTRESS), developed by NASA’s Jet Propulsion Laboratory (JPL) in Pasadena, Calif., at a cost of under $30 million. Selected in July 2014 as part of the “Earth Venture” program of small, targeted science investigations, this payload will monitor the mechanism of “transpiration”, whereby water is lost from plants through tiny pores in their leaves, as well as evaporation from the surrounding soil. When examined together, this analysis is known as “evapotranspiration”. ECOSTRESS was delivered from JPL to the Kennedy Space Center (KSC) in Florida in April of this year for final preparations and testing, ahead of launch.

The CRS-15 Dragon approaches the ISS while traversing over Italy. Photo Credit: NASA / Astronaut Ricky Arnold (@Astro_Ricky on Twitter)

If plants do not get enough water, they show signs of stress,” explained ECOSTRESS Principal Investigator Simon Hook of JPL. “By measuring evapotranspiration, we get an early indicator of that stress and we can do something about it, before the plants collapse.”

Equipped with a Prototype Hyperspectral Infrared Imager (HyspIRI) Thermal Infrared Radiometer (PHyTIR), ECOSTRESS will provide a station-based thermometer to measure plant temperatures and total heat radiance from Earth’s surface, across the contiguous United States. In so doing, it will investigate the response of the terrestrial biosphere to changes in water availability and impacts on a global scale, seeking to understand if agricultural vulnerability can be reduced through advanced monitoring of water consumptive use and improved drought estimations. Its resolution is so fine that it will be able to measure the temperature of an individual farmer’s field.

We see in our own gardens that one type of plants needs more water to grow than the next plant, but we have not been able to see this on a global scale,” said ECOSTRESS science lead Josh Fisher of JPL. “This has huge implications for our understanding of global water and carbon cycling and which plants are going to live or die in a future world of greater droughts.

ECOSTRESS will be robotically installed onto the porch of Japan’s Kibo lab. Photo Credit: NASA

Although evapotranspiration is monitored by current Earth-circling satellites, the current data offers either high spatial resolution and low time frequency or, conversely, high time frequency against coarse resolution. ECOSTRESS offers a four-day repeating cycle of observations at a spatial resolution of 125 feet (38 meters) x 185 feet (57 meters), at an altitude sufficiently high to observe most farms and small differences within ecosystems. Moreover, the station’s orbital inclination of 51.6 degrees to the equator provides greater observation time of forests and vegetation over temperate landmasses than is possible from most polar-orbiting Earth-science satellites.

ECOSTRESS will be extracted from the spacecraft’s unpressurized trunk, via Canadarm2, controlled by the Robotics Officer (ROBO) in the Mission Control Center (MCC) at the Johnson Space Center (JSC) in Houston, Texas. It will be installed onto Site 10, at the port “end” of the Exposed Facility (EF) of Japan’s Kibo lab, where it is expected to operate for approximately one year.

During a spacewalk in March, Expedition 55 astronauts Drew Feustel and Ricky Arnold installed additional wireless equipment onto the station’s Tranquility node to enhance ECOSTRESS’s payload data-processing operations.

Also riding uphill aboard CRS-15 is a “Ground Spare” Latching End Effector (LEE) for Canadarm2. Unlike the Remote Manipulator System (RMS) mechanical arm of NASA’s now-retired shuttle fleet—whose behavior mimicked the human arm in several respects—Canadarm2 has LEE “hands” at each end, which enable it to inchworm its way along the station’s expansive truss structure from worksite to worksite, plugging its Power and Data Grapple Fixtures (PDGFs) into receptacles along the way. The LEE “ends” are distinguishable by the alphabetical designations “A” and “B” and each is a cylindrical unit, about 3.5 feet (1.1 meters) long.

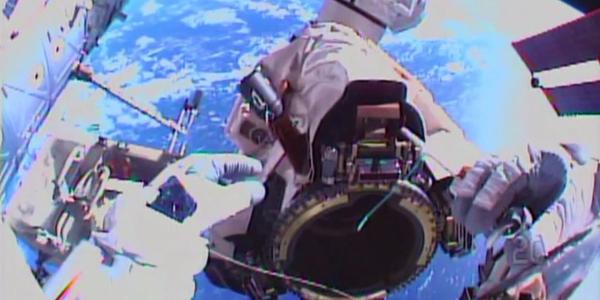

One of Canadarm2’s Latching End Effectors (LEEs) presents itself to spacewalker Terry Virts, during a lubrication task in early 2015. Photo Credit: NASA

The LEE that will be aboard the CRS-15 Dragon mission was initially built as a Qualification Model under a development contract that delivered initial elements of Canadarm2,” the Canadian Space Agency’s Audrey Barbier told AmericaSpace. “This LEE was then converted into a flight unit under three consecutive Mobile Servicing System (MSS) Logistics and Engineering Support contracts…from 2003 to July 2016.” After delivery to the station, the new LEE will be robotically installed onto Site 8 of External Stowage Platform (ESP)-2, located on the port side of the Quest airlock.

Canadarm2 was launched to the ISS way back in April 2001 and, since then, its performance has been virtually top-notch, with the notable exception of age-induced wear-and-tear manifested through increased motor currents in its LEEs. Both ends were lubricated by spacewalking astronauts in February 2015 and January 2017, before LEE-A was replaced last October and LEE-B similarly changed-out in January of this year. The degraded LEE-A currently resides inside the station and will return to Earth later this summer aboard CRS-15 for refurbishment.

We are anticipating it will take about two years to investigate and refurbish the LEE,” Ms. Barbier told AmericaSpace. It will then be relaunched to serve as an on-orbit spare for the remainder of the ISS lifetime.

Other payloads aboard Dragon’s pressurized segment included the Micro-12 cellular biology experiment, provided by NASA’s Ames Research Center (ARC) in Mountain View, Calif. It will investigate the effects of spaceflight upon the physiology of Shewanella oneidensis MR-1, an exoelectrogenic microorganism with the potential for future use in microbial fuel cells to create electricity from waste organic matter. The use of bioelectrochemical systems also has important implications for waste water processing and the synthesis of biofuels, food products and therapeutics on future long-duration space missions.

July 2, 2018: International Space Station Configuration. Five spaceships are attached to the space station including the SpaceX Dragon and Cygnus resupply ships from the United States; and from Roscosmos, the Progress 69 resupply ship and the Soyuz MS-08 and MS-09 crew ships. Image Credit: NASA

Cambridge, Mass.-based biotechnology firm Angiex, Inc., has provided an experiment to test endothelial cells—which line the walls of blood vessels—as part of advanced targeted treatments for tumor cells and cardiovascular diseases.

Twenty female mice from two different strains will fly as part of the seventh Rodent Research (RR-7) payload, as part of ongoing studies by Northwestern University in Evanston, Ill., into the effect of microgravity on microorganisms in the gastrointestinal tract. These microorganisms are known to have a detrimental impact on mammalian (including human) physiology and behavior, with clear links to intestinal, immune-system, mental and metabolic health problems. And the University of Florida’s Space Algae experiment seeks to explore the genetic basis for productivity of algae cultivated in the microgravity environment. Potential uses of space-cultivated algae include carbon dioxide recycling systems, food provision for astronauts, biodiesels and chemicals for the synthesis of plastics and resins. Additionally, many algal species synthesize oils which are important for human nutrition and can protect against cosmic radiation and retinal damage.

Dragon CRS-15 is expected to remain at the ISS for approximately one month, before returning to Earth for a gentle splashdown off the coast of Baja, California with about 3,800 pounds of cargo and research, including an investigation to advance DNA sequencing in space and the Angiex cancer therapy investigation to improve understanding of endothelial cells that line the walls of blood vessels.


 – Article written by Mike Killian and Ben Evans (dated July 2, 2018).
