SpaceX Ready to Launch Thaicom-6 Satellite Tonight After Three-Day Delay

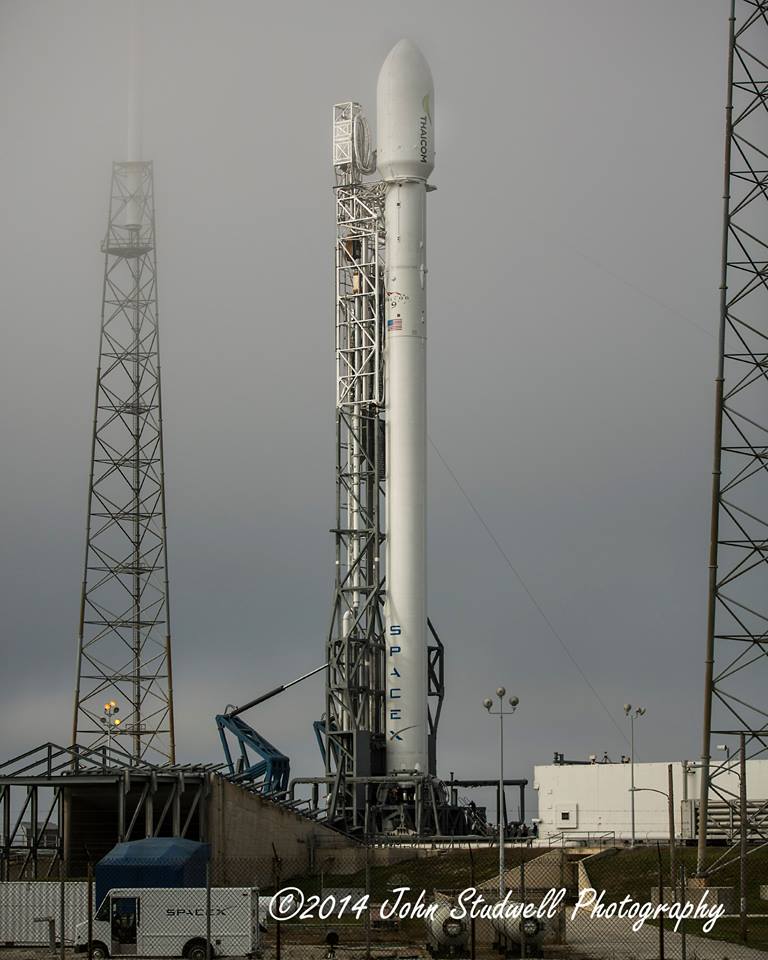

A SpaceX Falcon 9 v1.1 rocket ready to launch the Thaicom-6 satellite from Cape Canaveral, FL tonight at 5:06 p.m. EST. The flight will be the third for the company's new v1.1 rocket. Photo Credit: AmericaSpace / John Studwell
A SpaceX Falcon 9 v1.1 rocket, ready to launch the Thaicom-6 satellite from Cape Canaveral, Fla., tonight at 5:06 p.m. EST. The flight will be the third for the company’s new v1.1 rocket. Photo Credit: AmericaSpace / John Studwell

With 2013 now but a memory, America’s space program is wasting no time kicking off the new year with the first U.S. space launch scheduled to blast out of Florida’s Cape Canaveral Air Force Station this evening, courtesy of Space Exploration Technologies (SpaceX). After a three-day delay, the company is scheduled to launch a commercial telecommunications satellite into a geosynchronous transfer orbit (GTO) for Asian satellite operator Thaicom Public Limited Company (PLC).

The 7,330-pound hybrid C-band and Ku-band satellite, identified as Thaicom-6, will launch from Space Launch Complex-40 (SLC-40) atop SpaceX’s new upgraded 224-foot-tall Falcon-9 v1.1 rocket. The mission will be the third launch of the new rocket and will loft Thaicom-6 skyward no earlier than 5:06 p.m. EST tonight, with the launch window extending until 7:08 p.m. EST.

The satellite, which was manufactured and tested by Orbital Sciences Corporation in Dulles, Va., was designed based on Orbital’s very successful GEOStar-2 satellite platform, which can accommodate all types of commercial communications payloads and is compatible with all major commercial launchers.

Technicians work on the Thaicom-6 telecommunications satellite at Orbital Science Corporation's Dulles, Virginia facility.  SpaceX is expected to launch the spacecraft atop their new Falcon-9 v1.1 rocket from Florida NET Jan. 6, 2014.  Photo Credit: Orbital Sciences Corporation
Technicians work on the Thaicom-6 telecommunications satellite at Orbital Science Corporation’s Dulles, Va., facility. SpaceX is expected to launch the spacecraft atop their new Falcon-9 v1.1 rocket from Florida NET Jan. 6, 2014. Photo Credit: Orbital Sciences Corporation

Thaicom 6′s gallium arsenide solar arrays will produce up to 3.7 kW of electrical power for the three-axis-stabilized satellite, with maneuvering capability for station-keeping provided by hydrazine thrusters. Last week, Thaicom Public Company Limited—the Bangkok-headquartered subsidiary of Shin Corporation and principal operator of the new satellite—announced that it had acquired a 66-percent booking on Thaicom 6′s capacity. It was also noted that the satellite would provide “higher quality of the digital TV and more high-definition channels.”

On Saturday, Dec. 28, SpaceX successfully conducted a Static Fire test on their rocket at Cape Canaveral, hoisting it vertical atop its launch pad and putting the vehicle and launch pad systems through a full countdown scenario which ended with firing of the rocket’s nine Merlin 1D engines. Days later, however, after holding the standard Launch Readiness Review (LRR), SpaceX decided to delay the launch from Jan. 3 to give the launch team time to resolve an issue with the rocket’s fairing.

Once launched, the satellite will be placed in a GTO and will be operated at 78.5 degrees East Longitude. Thaicom-6 is equipped with 18 C-band and 8 Ku-band transponders to provide service coverage to the growing satellite television market in Southeast Asia, South Asia, and Southern Africa (including Madagascar).

“This deal highlights the confidence that satellite operators have in SpaceX capabilities, and is the latest example of the effect SpaceX is having on the international commercial launch market,” said SpaceX CEO Elon Musk when the deal between SpaceX and Thaicom was announced in 2011. “Asia is a critical market and SpaceX is honored to support its growing launch needs with a reliable US-based solution.”

The payload fairing which encapsulates Thaicom-6 for its violent ride to orbit.  Photo Credit: AmericaSpace / John Studwell
The payload fairing which encapsulates Thaicom-6 for its violent ride to orbit. Photo Credit: AmericaSpace / John Studwell

Originally targeted for launch on 20 December, the final preparations for the Thaicom 6 launch were pushed to the right as a result of the delayed SES-8 mission, which suffered two scrubbed attempts in late November. This will be the third launch of the uprated Falcon 9 v1.1 rocket, which first flew last September, carrying Canada’s CASSIOPE scientitic payload into low-Earth orbit. This success was followed by SpaceX’s first mission to geostationary transfer orbit on 3 December, which delivered the SES-8 communications satellite. The new booster is powered by nine Merlin-1D engines on its first stage and a single Merlin-1D Vacuum engine on its second stage.

Tracking an early evening liftoff tonight, SpaceX will poll all stations for their “Go-No Go” status at T-13 minutes, after which the Terminal Count will commence at T-10 minutes. The Falcon 9′s flight control system will be enabled and the nine Merlin-1D engines on the first stage will begin a “chill-down” protocol as part of pre-launch conditioning. Autosequence Start will occur at T-6 minutes, with the rocket’s propellant tanks verified to be at their proper flight pressures, and SLC-40′s “strongback” will be completed retracted by T-4 minutes. The Flight Termination System (FTS)—tasked with destroying the Falcon in the event of a major accident during ascent—will be placed onto internal power and armed, and by T-2 minutes and 15 seconds the first stage will reach flight pressure.

At T-1 minute, the flight computer will assume primary control of the vehicle, with the second-stage tanks pressing to flight pressures. SLC-40′s “Niagara” deluge system will begin to flood the pad surface with 30,000 gallons (113,500 liters) of water per minute to suppress acoustic waves radiating from the Merlin-1D exhaust plumes. At T-45 seconds, all tanks will be confirmed at flight pressure. With propellant tanks fully pressurized, at T-3 seconds the nine Merlin-1D engines will roar to life, gradually ramping up to full power and producing a liftoff at 5:06 p.m. EST. The criticality of these final few seconds were highlighted on 28 November—Thanksgiving evening—when the SES-8 countdown was dramatically aborted after engine ignition due to a slower than intended thrust ramp.

At the instant of liftoff the nine first-stage engines will generate 1.3 million pounds (590,000 kg) of thrust, about 200,000 pounds (90,000 kg) greater than the earlier Falcon 9 v1.0, and will push the vehicle uphill for 180 seconds. Their propulsive yield will gradually rise to 1.5 million pounds (680,000 kg) in the rarefied high atmosphere. “Unlike airplanes, a rocket’s thrust actually increases with altitude,” noted SpaceX. “Falcon 9 generates 1.3 million pounds of thrust at sea level, but gets up to 1.5 million pounds of thrust in the vacuum of space. The first-stage engines are gradually throttled near the end of first-stage flight to limit launch vehicle acceleration as the rocket’s mass decelerates with the burning of fuel.”

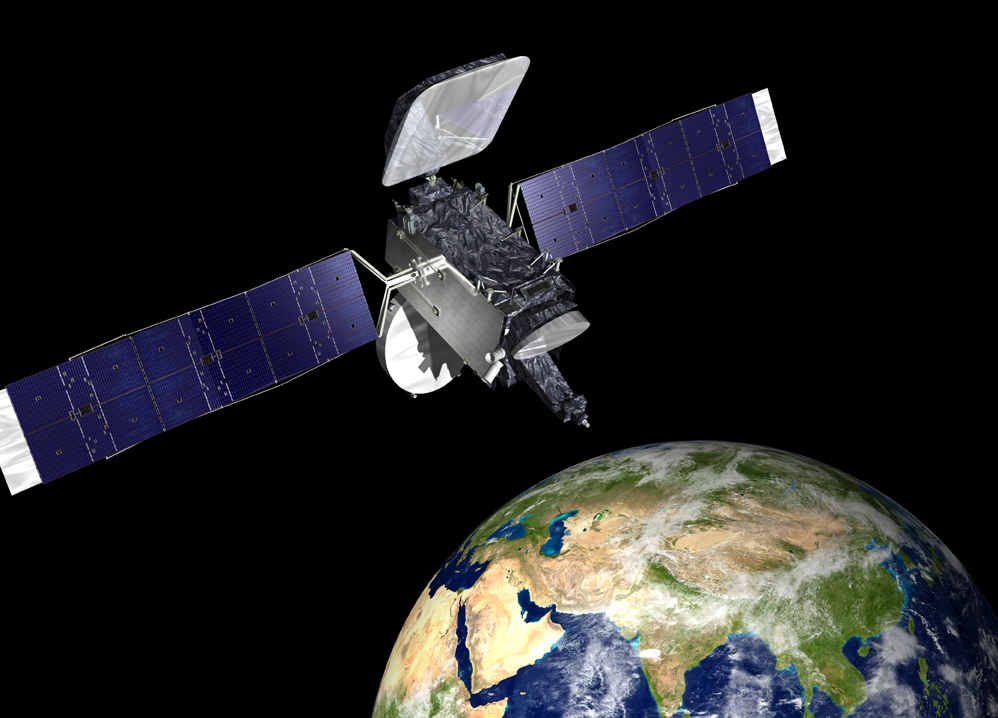

Artist's rendering of Thaicom-6 in orbit.  Image Credit: Orbital Sciences Corporation
Artist’s rendering of Thaicom-6 in orbit. Image Credit: Orbital Sciences Corporation

With around 1,970 seconds of test time and a lengthy qualification program, SpaceX has great confidence in the Merlin-1D. During a full-duration-mission firing in June 2012 in McGregor, Texas, the engine operated at or above the power (147,000 pounds of thrust) and duration (185 seconds) required for a Falcon 9 launch. The Merlin-1D has a vacuum thrust-to-weight ratio in excess of 150:1, making it the most efficient liquid-fueled rocket engine in history. The ignition system for the v1.1′s first stage was tested in April 2013. The stage also includes four extendible landing legs, manufactured from carbon-fiber and aluminum honeycomb, to support a series of tests which SpaceX CEO Elon Musk hopes will lead to vertical-takeoff-vertical-landing (VTVL) capability by the latter half of the present decade.

Immediately after clearing the SLC-40 tower, the Falcon 9 v1.1 will execute a combined pitch, roll, and yaw program maneuver to establish itself onto the proper flight azimuth for the injection of Thaicom 6 into geostationary transfer orbit. Eighty seconds into the ascent, the vehicle will pass Mach 1 and experience a period of maximum aerodynamic stress (known as “Max Q”) on its airframe. The Merlin-1Ds will continue to burn hot and hard, finally shutting down at T+2 minutes and 58 seconds, and the first stage will be jettisoned about five seconds later. The turn will then come for two “burns” by the Falcon’s restartable second stage, which will ignite for the first time at about T+3 minutes and 10 seconds. Its single Merlin-1D Vacuum engine, with a maximum thrust of 180,000 pounds (81,600 kg), will burn for five minutes to establish the vehicle and Thaicom 6 payload into a “parking” orbit.

A minute into the second-stage flight, the two-piece Payload Fairing (PLF)—a 43-foot-long (13.1-meter) protective cover which encapsulates Thaicom 6—will separate from the vehicle. “Like the inter-stage between the first and second stages,” explained AmericaSpace’s Launch Tracker in its notes for the inaugural Falcon 9 v1.1 launch on 29 September, “a pneumatic system is used to separate the two halves, rather than the traditional pyrotechnics.” Fabricated from carbon-fiber and aluminum-honeycomb, the PLF was extensively tested by SpaceX in April 2013 within the confines of the Reverberant Acoustic Test Facility at NASA’s Plum Brook Station in Sandusky, Ohio, part of the Cleveland-based Glenn Research Center.

Falcon 9 v1.1 is targeted to launch the THAICOM 6 telecommunications satellite from Cape Canaveral Air Force Station. The launch window opens at 5:06pm EST.  Photo Credit: SpaceX
Falcon 9 v1.1 is targeted to launch the THAICOM 6 telecommunications satellite from Cape Canaveral Air Force Station. The launch window opens at 5:06pm EST. Photo Credit: SpaceX

The first shutdown of the second stage engine will occur at T+8 minutes and 30 seconds, after which the vehicle will coast for 18 minutes, ahead of a second “burn”—lasting about one minute—to carry Thaicom 6 into geostationary transfer orbit. About 35 minutes after launch, the satellite should be released into orbit. Assuming a success on Friday, this launch will kick off an ambitious 2014 manifest for SpaceX, which is presently gearing up to stage at least three Dragon cargo delivery missions to the International Space Station (ISS), with the first targeted for mid-February.

The Kennedy Space Center Visitor Complex is offering launch viewing to the public from the Apollo/Saturn V viewing area, which is roughly 6 miles from SLC-40 and offers the closest public viewing for this particular launch. There is an additional charge to be transported to that viewing area, in addition to the regular admission cost to the Visitor Complex. Off site, the alternative free viewing locations would be along the Indian River on HWY-1 in Titusville or along the 528 next to Port Canaveral, although both locations are significantly farther than the viewing being offered by the KSC Visitor Complex.

“The Falcon 9 will serve our unique needs at Thaicom. This dedicated launch vehicle is both cost-effective and best-matched to our requirements,” said Arak Chonlatanon, CEO of Thaicom Plc. “We look forward to working closely with the SpaceX team to ensure that the Thaicom 6 satellite will be successfully launched.”

Tonight’s forecast from the 45th Space Wing calls for a 80-percent chance of favorable conditions expected at T-0, with the only real concern being strong winds gusting over 30 mph, although meterologists do not expect those winds to delay tonight’s launch.

This article was authored by AmericaSpace writers Mike Killian and Ben Evans.
