PHOTOS: New Improved Cygnus Hoisted Atop ULA’s Atlas-V for Dec. 3 Return to Space Station

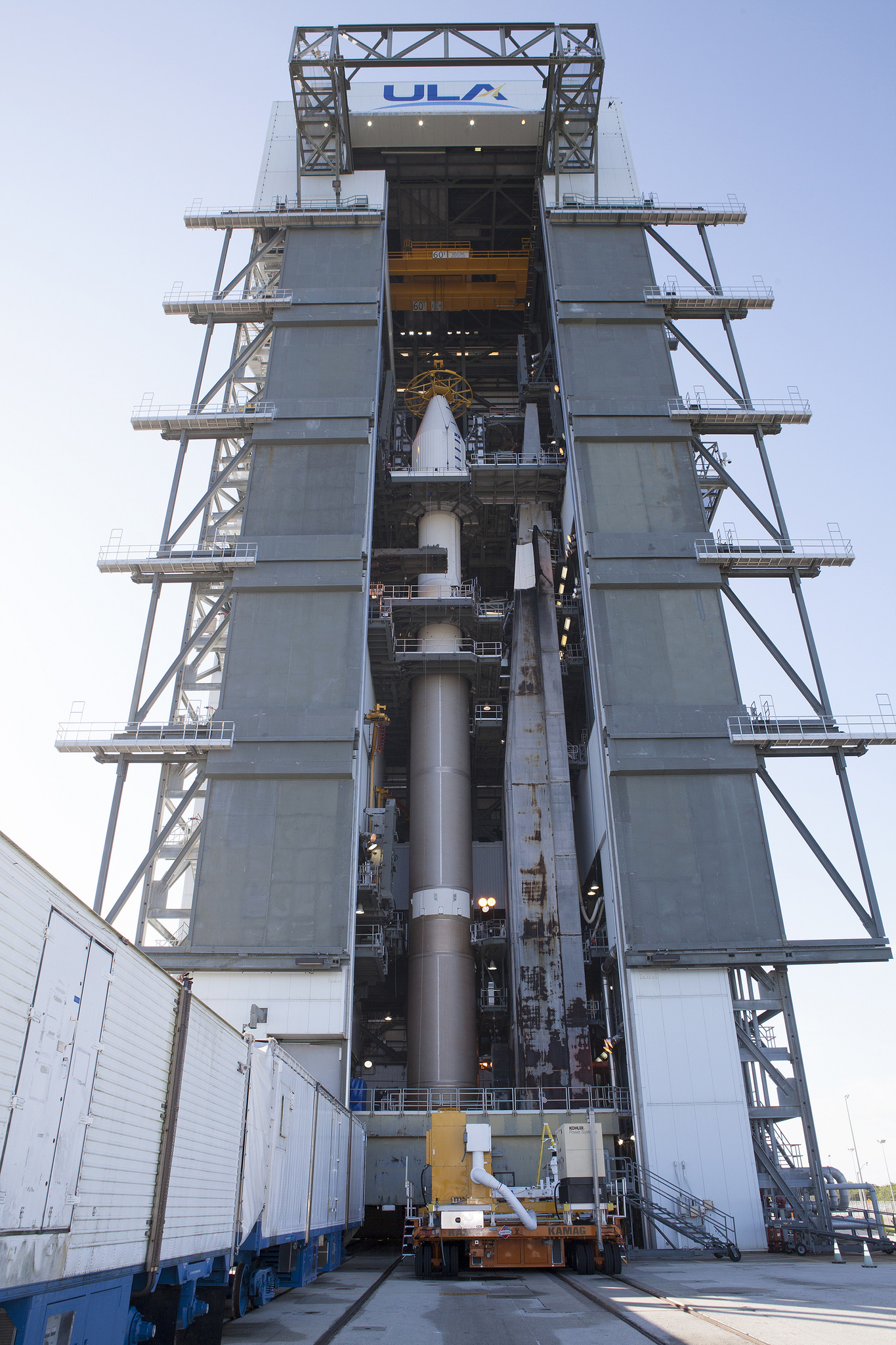

On Friday, November 20, the Orbital ATK's Cygnus "Deke Slayton II" spacecraft for the OA-4 International Space Station cargo resupply mission was mated to its Atlas V rocket. Launch of the OA-4 mission is scheduled for December 3, 2015 from Cape Canaveral Air Force Station Space Launch Complex-41. Photo Credit: NASA / Dmitri Gerondidakis
On Friday, Nov. 20, the Orbital ATK’s Cygnus “Deke Slayton II” spacecraft for the OA-4 International Space Station cargo resupply mission was mated to its Atlas V rocket. Launch of the OA-4 mission is scheduled for Dec. 3, 2015, from Cape Canaveral Air Force Station Space Launch Complex-41. Photo Credit: NASA / Dmitri Gerondidakis

With less than 10 days to launch operations at Cape Canaveral’s Launch Complex-41, where Orbital ATK’s new enhanced Cygnus spacecraft is now integrated to the top of its 196-foot-tall United Launch Alliance (ULA) Atlas-V booster, are moving forward rapidly for a Dec. 3 liftoff just a half-hour after sunset. Orbital ATK’s first unmanned Cygnus cargo ship since the loss of the ORB-3 mission, named the S.S. Deke Slayton II, is now bigger and better than any Cygnus before, and it’s packed with over 7,380 pounds of supplies, equipment, and experiments for the incumbent Expedition 45 crew of the International Space Station (total weight with packaging is over 7,700 lbs).

The spacecraft as a whole is an enhanced version of the original, featuring an extended Pressurized Cargo Module (PCM), a lighter Service Module (SM), and new lightweight Ultraflex solar arrays—upgrades which will enable the Deke Slayton II to fly nearly as much weight as the last three Cygnus missions combined.

The OA-4 Cygnus spacecraft "Deke Slayton II" in the clean room at KSC recently, packed full with over 7,700 pounds of supplied for the ISS. Photo Credit: Alan Walters / AmericaSpace
The OA-4 Cygnus spacecraft “Deke Slayton II” in the clean room at KSC recently, packed full with over 7,700 pounds of supplied for the ISS. Photo Credit: Alan Walters / AmericaSpace

The spacecraft, encapsulated in its 13-foot-diameter (4 meter) bullet-like payload fairing, weighs in at over 16,500 pounds, making it the heaviest Atlas-V payload ULA will have ever flown, surpassing the 7.5 ton weight of the NAVY’s four Mobile User Objective System (MUOS) satellites launched over the last several years from the same pad.

The spacecraft was transported from nearby Kennedy Space Center’s Payload Hazardous Servicing Facility clean room to pad 41’s beachside Atlas Vertical Integration Facility (VIF) to meets its rocket on Friday, Nov. 20, and is now undergoing final integrated testing and closeout preparations for launch next week.

The Atlas-V and its precious cargo will be rolled out from the VIF to nearby pad-41 for the OA-4 mission on Wednesday, Dec. 2, a pad which itself is rapidly changing in order to support the return of crewed flights from U.S. soil to the ISS in the next couple years (Boeing will use the pad to launch their Starliner spacecraft under contract with NASA).

As reported in an in-depth article earlier this month by AmericaSpace Senior Writer Ben Evans, Deke Slayton II is carrying 7,383 pounds (3,349 kg) of total cargo—the heaviest payload ever delivered into space aboard a Cygnus, some 40 percent greater than any of its predecessors—to support ongoing scientific research, maintenance, crew needs, and preparations for future spacewalks. AmericaSpace understands from NASA that 500 pounds (227 kg) of this heavyweight payload will be EVA equipment, which comprises generic hardware and tools for the U.S.-built Extravehicular Mobility Units (EMUs), including a new Simplified Aid for EVA Rescue (SAFER) backpack unit, space suit gloves and batteries, a Liquid Cooling and Ventilation Garment (LCVG), and tool bags/caddies.

According to Novosti Kosmonavtiki, U.S. EVA-34 is tentatively placed in the January 2016 timeframe, tasked with continuing to lay cables for the forthcoming International Docking Adapter (IDA)-3, although it is not formally scheduled at present. If it does occur during this period, however, it would involve two of the three U.S. Orbital Segment (USOS) members of Expedition 46: NASA astronauts Scott Kelly and Tim Kopra and Britain’s Tim Peake.

In addition to the EVA equipment, the spacecraft has onboard 1,867 pounds (847 kg) of science investigations for the ISS, most notably the Space Automated Bioproduct Lab (SABL), which will support a wide range of fundamental, applied, and commercial life sciences experimentation, as well as education-based investigations for students from kindergarten through the university level. Research in SABL will focus on micro-organisms, such as bacteria, yeast, algae, fungi, and viruses, to animals cells and tissues and even small plant and animal organisms.

Another significant payload is the first NanoRacks microsatellite ever to be deployed from the ISS. Known as the NanoRacks-Microsat-SIMPL, it consists of a modular, Hyper-Integrated Satellite (HiSat) and is reportedly capable of providing complete satellite functionality on a nanosatellite scale. When released into space, it will become the first propulsion-capable satellite ever deployed from the NanoRacks-MicroSat-Deployer (Kaber).

In addition to the science and EVA payloads, Deke Slayton II will also transport 2,603 pounds (1,181 kg) of crew supplies, 2,220 pounds (1,007 kg) of vehicle hardware, and 191 pounds (87 kg) of computer resources to the ISS.

December's OA-4 mission marks the first flight of Orbital ATK's new "Enhanced Cygnus." Photo Credit: John Studwell / AmericaSpace
December’s OA-4 mission marks the first flight of Orbital ATK’s new “Enhanced Cygnus.” Photo Credit: John Studwell / AmericaSpace

Given the performance and capability of ULA’s workhorse Atlas-V rocket, the launch window is unusually long for an ISS chase, 30 minutes. ULA spokesperson Lyn Chassagne provided us the following explanation, courtesy of Jim Sponnick, ULA’s vice president for Atlas and Delta programs:

“Instantaneous launch windows are the standard way to accomplish a rendezvous mission with a low-earth object like the ISS, and this approach can significantly limit the probability of an on-time launch. We always strive to implement longer launch windows in our mission designs, to maximize the probability of a first-day launch for our customers. We have been enhancing our mission design capabilities and operational processes for years in order to make good use of the launch vehicle performance to provide the flexibility to accomplish launch window objectives.”

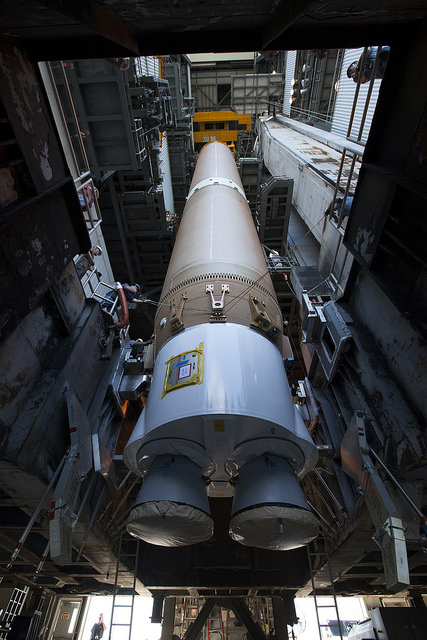

Business end of ULA's Atlas-V booster for next week's scheduled liftoff with Cygnus OA-4 to the ISS. Photo Credit: ULA
Business end of ULA’s Atlas-V booster for next week’s scheduled liftoff with Cygnus OA-4 to the ISS. Photo Credit: ULA

“For the OA-4 mission, the ULA mission design team has worked very closely with the Orbital ATK team to provide a design approach that enables a longer launch window. The OA-4 launch design approach accounts for the fact that the ISS orbit can change shortly before the launch, if either an overall orbit adjustment or evasive debris mitigation maneuver is required.”

“Considering the capabilities inherent in the Atlas design, the late changes that can occur in the ISS orbit, and the close coordination with the Orbital ATK Cygnus rendezvous design, we have implemented a 30-minute long window, which will occur within a bounding 50-minute-long window that accounts for the potential late orbital changes for the ISS.”

The OA-4 resupply mission will come over a year after Orbital ATK’s 133-foot-tall Antares rocket exploded spectacularly just six seconds after liftoff on Oct. 28, 2014, carrying the company’s Cygnus on its third ISS resupply mission under a $1.9 billion Commercial Resupply Services (CRS) contract with NASA. Signed in December 2008, the agreement requires the Dulles, Va.-based company to fly eight dedicated Cygnus missions to the ISS by 2016 to deliver a total of 44,000 pounds of payloads and other items for NASA.

The contract has since since been extended, for obvious reasons, and NASA has already given Orbital ATK two additional missions under that same contract as well, missions OA-9e and OA-10e, giving Cygnus 10 flights under the CRS-1 contract instead of the original eight.

However, the increased capability of the ULA Atlas-V compared to the Orbital ATK Antares means ULA can haul 35 percent more cargo to orbit with Cygnus, which would have allowed Orbital ATK to fulfill their original CRS-1 contract in seven flights instead of eight. Now, with the contract extended to 10 flights, it is expected that Orbital ATK will only really need nine, with the 10th Cygnus CRS-1 contract flight optional depending on the needs of the ISS.

“With OA-4 set to launch in December and at least three additional missions to the ISS planned in 2016, we remain solidly on schedule to meet our CRS cargo requirements for NASA,” said Frank Culbertson, president of Orbital ATK’s Space Systems Group and former NASA space shuttle/ISS astronaut. “Our team’s performance in meeting milestones on an accelerated timeline demonstrates the company’s flexibility and responsiveness to customer needs. If all goes as planned, on Dec. 3, space watchers new and seasoned can thrill to seeing a unique, ‘two-of-its-kind’ launch, as an Atlas-V rocket lofts a Cygnus cargo ship to orbit.”

Liftoff is scheduled for Thursday, Dec 3. The launch window opens at 5:55 p.m. EST and extends to 6:25 p.m. EST.

If the launch does not occur on Dec. 3, the next launch opportunity would be at 5:33 p.m. on Friday, Dec. 4, resulting in a grapple and berthing on Dec. 7 or Dec. 8.

Bookmark our OA-4 Mission Tracker for regular updates and LIVE COVERAGE on launch day!

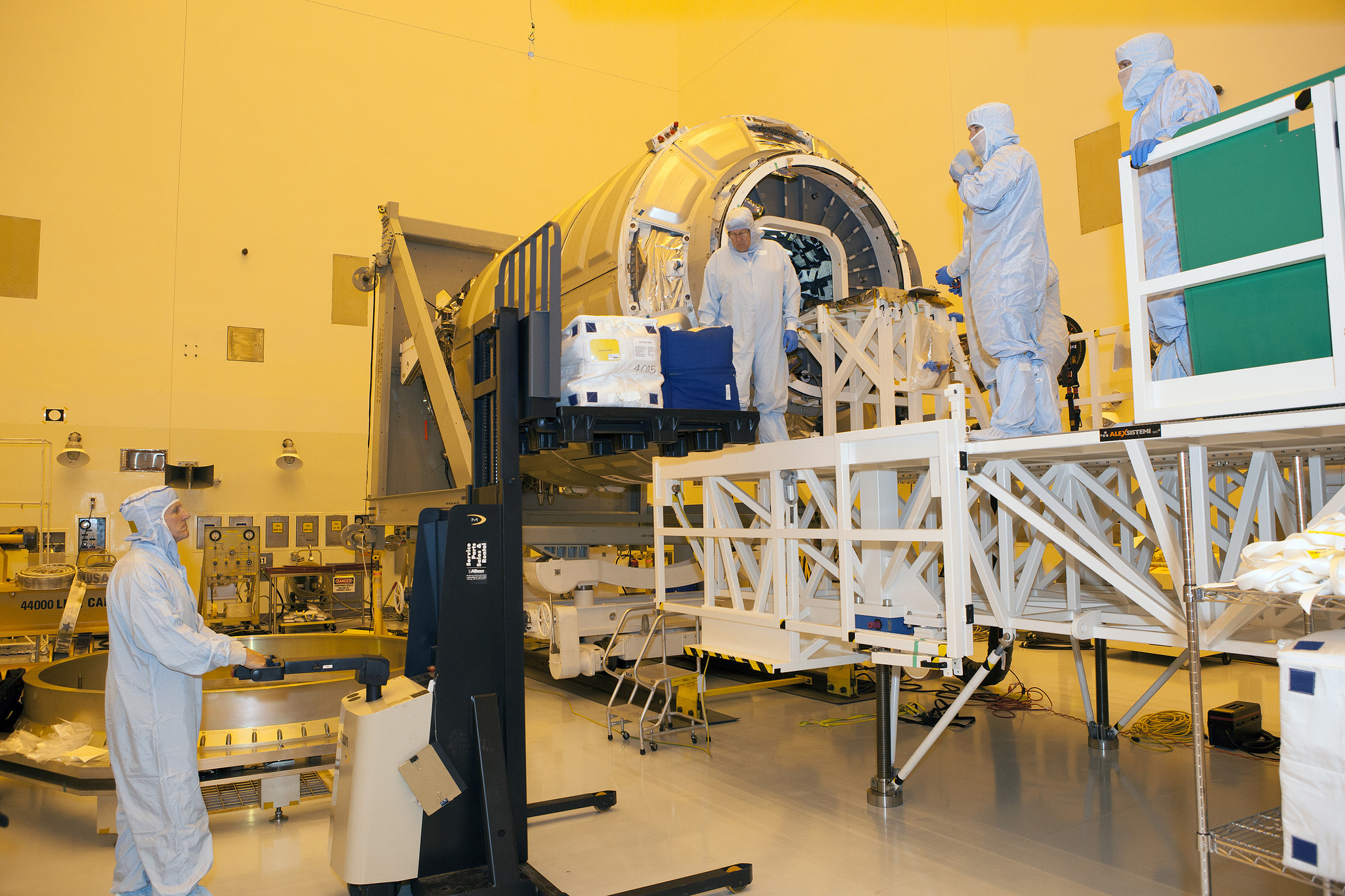

Inside the Payload Hazardous Servicing Facility high bay at NASA's Kennedy Space Center in Florida, technicians transfer supplies and hardware into the Orbital ATK Cygnus pressurized module during late stowage operations. Photo Credit: NASA / Dimitri Gerondidakis
Inside the Payload Hazardous Servicing Facility high bay at NASA’s Kennedy Space Center in Florida, technicians transfer supplies and hardware into the Orbital ATK Cygnus pressurized module during late stowage operations. Photo Credit: NASA / Dimitri Gerondidakis
Inside the Payload Hazardous Servicing Facility high bay at NASA's Kennedy Space Center in Florida, technicians transfer supplies and hardware into the Orbital ATK Cygnus pressurized module during late stowage operations. Photo Credit: NASA / Dimitri Gerondidakis
Inside the Payload Hazardous Servicing Facility high bay at NASA’s Kennedy Space Center in Florida, technicians transfer supplies and hardware into the Orbital ATK Cygnus pressurized module during late stowage operations. Photo Credit: NASA / Dimitri Gerondidakis
Inside the Payload Hazardous Servicing Facility high bay at NASA's Kennedy Space Center in Florida, technicians transfer supplies and hardware into the Orbital ATK Cygnus pressurized module during late stowage operations. Photo Credit: NASA / Dimitri Gerondidakis
Inside the Payload Hazardous Servicing Facility high bay at NASA’s Kennedy Space Center in Florida, technicians transfer supplies and hardware into the Orbital ATK Cygnus pressurized module during late stowage operations. Photo Credit: NASA / Dimitri Gerondidakis

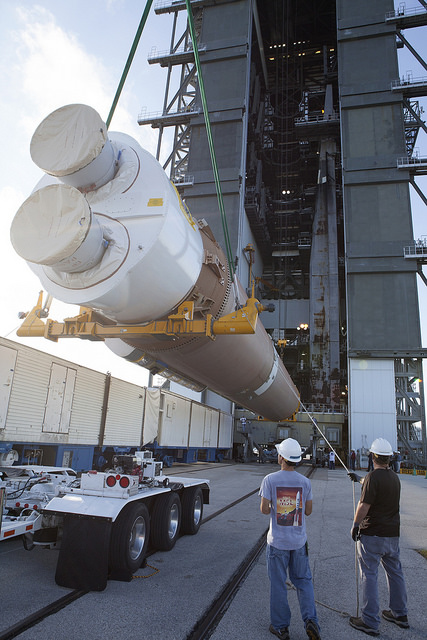

The ULA Atlas-V booster that will lift the Orbital ATK Enhanced Cygnus spacecraft into orbit arrives at the Space Launch Complex 41 Vertical Integration Facility on Cape Canaveral Air Force Station in Florida. Photo Credit: NASA/Kim Shiflett
The ULA Atlas-V booster that will lift the Orbital ATK Enhanced Cygnus spacecraft into orbit arrives at the Space Launch Complex 41 Vertical Integration Facility on Cape Canaveral Air Force Station in Florida. Photo Credit: NASA/Kim Shiflett
The ULA Atlas-V booster that will lift the Orbital ATK Enhanced Cygnus spacecraft into orbit arrives at the Space Launch Complex 41 Vertical Integration Facility on Cape Canaveral Air Force Station in Florida. Photo Credit: NASA/Kim Shiflett
The ULA Atlas-V booster that will lift the Orbital ATK Enhanced Cygnus spacecraft into orbit arrives at the Space Launch Complex 41 Vertical Integration Facility on Cape Canaveral Air Force Station in Florida. Photo Credit: NASA/Kim Shiflett
The ULA Atlas-V booster that will lift the Orbital ATK Enhanced Cygnus spacecraft into orbit arrives at the Space Launch Complex 41 Vertical Integration Facility on Cape Canaveral Air Force Station in Florida. Photo Credit: NASA/Kim Shiflett
The ULA Atlas-V booster that will lift the Orbital ATK Enhanced Cygnus spacecraft into orbit arrives at the Space Launch Complex 41 Vertical Integration Facility on Cape Canaveral Air Force Station in Florida. Photo Credit: NASA/Kim Shiflett

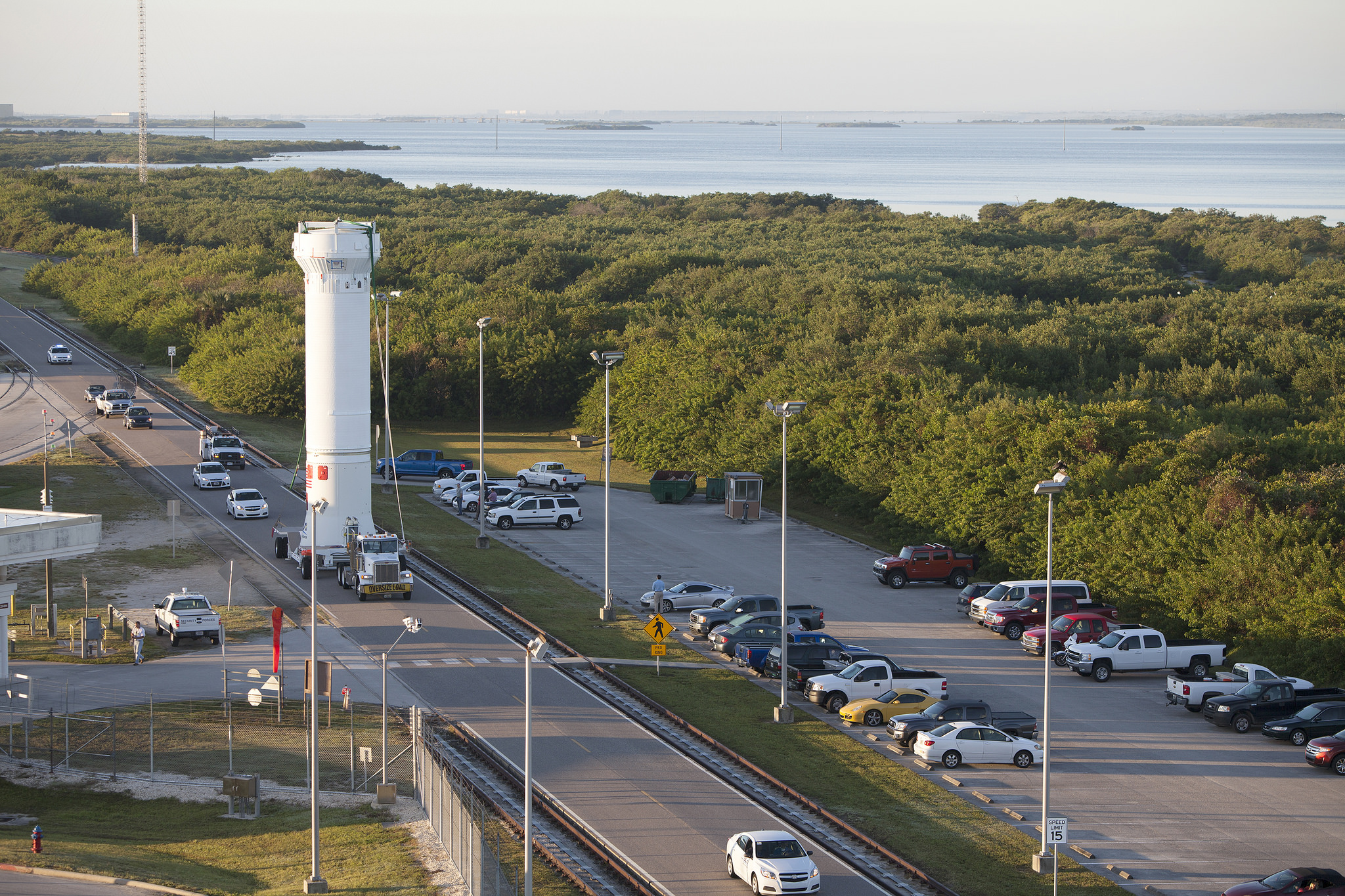

At Cape Canaveral Air Force Station in Florida, a United Launch Alliance (ULA) centaur stage is transported to Launch Complex 41. Along with a ULA Atlas V rocket, it will boost the Orbital ATK Cygnus OA-4 spacecraft on a commercial resupply services mission to the International Space Station. Photo Credit: NASA / Dimitrios Gerondidakis
At Cape Canaveral Air Force Station in Florida, a United Launch Alliance (ULA) centaur stage is transported to Launch Complex 41. Along with a ULA Atlas V rocket, it will boost the Orbital ATK Cygnus OA-4 spacecraft on a commercial resupply services mission to the International Space Station. Photo Credit: NASA / Dimitrios Gerondidakis
At Cape Canaveral Air Force Station in Florida, a United Launch Alliance (ULA) centaur stage is transported to Launch Complex 41. Along with a ULA Atlas V rocket, it will boost the Orbital ATK Cygnus OA-4 spacecraft on a commercial resupply services mission to the International Space Station. Photo Credit: NASA / Dimitrios Gerondidakis
At Cape Canaveral Air Force Station in Florida, a United Launch Alliance (ULA) centaur stage is transported to Launch Complex 41. Along with a ULA Atlas V rocket, it will boost the Orbital ATK Cygnus OA-4 spacecraft on a commercial resupply services mission to the International Space Station. Photo Credit: NASA / Dimitrios Gerondidakis
At Cape Canaveral Air Force Station in Florida, a United Launch Alliance (ULA) centaur stage is mounted atop a ULA Atlas V rocket at Launch Complex 41. The launch vehicle will boost the Orbital ATK Cygnus OA-4 spacecraft on a commercial resupply services mission to the International Space Station. Photo Credit: NASA / Dimitrios Gerondidakis
At Cape Canaveral Air Force Station in Florida, a United Launch Alliance (ULA) centaur stage is mounted atop a ULA Atlas V rocket at Launch Complex 41. The launch vehicle will boost the Orbital ATK Cygnus OA-4 spacecraft on a commercial resupply services mission to the International Space Station. Photo Credit: NASA / Dimitrios Gerondidakis

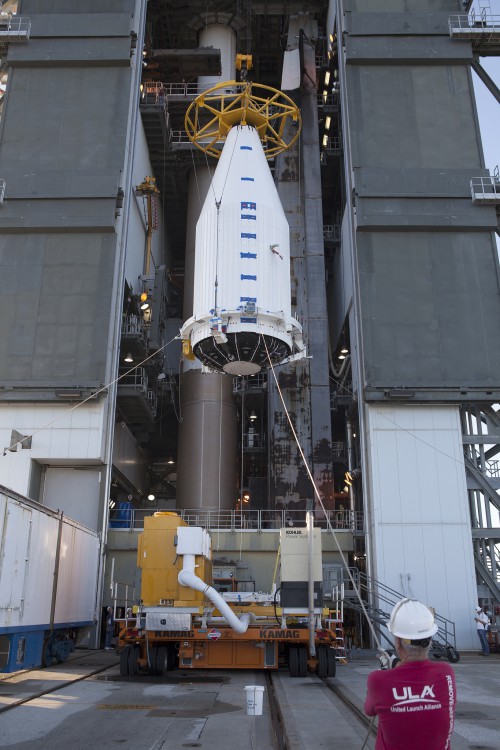

A Kamag transporter moves the Cygnus spacecraft inside a payload fairing to the Vertical Integration Facility at Space Launch Complex 41 so the spacecraft can be lifted into place atop the waiting United Launch Alliance Atlas V rocket. Photo Credit: NASA / Dmitri Gerondidakis
A Kamag transporter moves the Cygnus spacecraft inside a payload fairing to the Vertical Integration Facility at Space Launch Complex 41 so the spacecraft can be lifted into place atop the waiting United Launch Alliance Atlas V rocket. Photo Credit: NASA / Dmitri Gerondidakis
A crane lifts the Cygnus spacecraft, fitted inside a payload fairing, to the Vertical Integration Facility at Space Launch Complex 41 so the spacecraft can bolted to the top of the waiting United Launch Alliance Atlas V rocket. Photo Credit: NASA / Dmitri Gerondidakis
A crane lifts the Cygnus spacecraft, fitted inside a payload fairing, to the Vertical Integration Facility at Space Launch Complex 41 so the spacecraft can bolted to the top of the waiting United Launch Alliance Atlas V rocket. Photo Credit: NASA / Dmitri Gerondidakis
A crane lifts the Cygnus spacecraft, fitted inside a payload fairing, into the Vertical Integration Facility at Space Launch Complex 41 so the spacecraft can bolted to the top of the waiting United Launch Alliance Atlas V rocket. Photo Credit: NASA / Dmitri Gerondidakis
A crane lifts the Cygnus spacecraft, fitted inside a payload fairing, into the Vertical Integration Facility at Space Launch Complex 41 so the spacecraft can bolted to the top of the waiting United Launch Alliance Atlas V rocket. Photo Credit: NASA / Dmitri Gerondidakis
