‘The Slightest Glitch’: Remembering The Fire, OTD in 1967

The Apollo 1 crew consisted of (from left) Command Pilot Virgil “Gus” Grissom, Senior Pilot Ed White and Pilot Roger Chaffee. Photo Credit: NASA

More than five decades ago, tonight, one of the worst tragedies in the history of U.S. space exploration unfolded with horrifying suddenness on Pad 34 at Cape Kennedy in Florida. “The Fire”—as it infamously became known—tore through the Command Module (CM) of the Apollo 1 spacecraft, during a “plugs-out” ground test on the evening of 27 January 1967, killing astronauts Virgil “Gus” Grissom, Ed White and Roger Chaffee. It was a disaster that almost halted President John F. Kennedy’s pledge to land a man on the Moon before the decade’s end and, even today, the loss of Grissom and his men leaves a dark stain on the glory of the Apollo program.

Video Credit: CBS News/YouTube

Today, Pad 34 is overgrown by bushes, weeds and a handful of wild pepper trees as it decays in the salty Atlantic air. A faded “Abandon in Place” sign adorns one of its skeletal legs, whilst close to its base are a pair of plaques, memorializing the loss of an astronaut who almost drowned after his first spaceflight, another who became America’s first spacewalker and a third who might have been the youngest-ever U.S. citizen in space.

The plaques dedicate themselves to Grissom, White and Chaffee and note simply: “Launch Complex 34, Friday, 27 January 1967, 1831 Hours”, paying tribute to the place, the date and the time that these three men gave the ultimate sacrifice for their nation and for the world.

The launch of Orion’s Exploration Flight Test (EFT)-1 mission in December 2014, as seen from the site of the Apollo 1 fire at Pad 34. Photo Credit: Mike Killian/AmericaSpace

The “Block 1” variant of the Apollo spacecraft, in the minds of both Grissom and his backup, veteran astronaut Wally Schirra, was a sloppy and unsafe machine. Both men had spent months overseeing poor performance and low standards by prime contractor North American and, by fall 1966, hundreds of technical issues remained unsolved: a faulty glycol pump in the environmental control system, leaking thrusters, coolant glitches, bad wiring and inadequate software, to name but a few.

Grissom’s crew even prepared a mocking portrait of themselves, heads bowed in prayer over a model of their spacecraft. “It’s not that we don’t trust you,” Grissom, said, “but this time, we’ve decided to go over your head!” He even hung a lemon over the Block 1 simulator’s hatch.

North American technicians work inside the Block I Command Module during processing. This craft caused great concern to Apollo 1 Commander Virgil “Gus” Grissom, who followed its progress with mounting distress and anger. Photo Credit: NASA

To be fair, North American had faced their own technical challenges. NASA had mandated that the Apollo CM should operate a pure oxygen atmosphere—an extreme fire hazard, admittedly, but infinitely less complex than trying to implement a more Earth-like oxygen-nitrogen mix, which, if misjudged, could suffocate the men before they even knew about it. In space, the cabin would be maintained at a pressure of about one-fifth of an atmosphere, but from ground tests would be pressurized to slightly more than one atmosphere.

This would eliminate the risk of the spacecraft imploding, but at such high pressures there remained the danger that anything which caught fire would burn almost explosively. At an early stage, North American objected to the use of pure oxygen, but NASA, which had employed it without incident during its Mercury and Gemini programs, ruled against it.

Backdropped by a training version of their Block 1 command module, astronauts Ed White, Gus Grissom and Roger Chaffee confer before a water egress training exercise in the Gulf of Mexico in October 1966. Photo Credit: NASA

The choice of pure oxygen had not been made lightly. NASA knew that a two-gas system, providing an Earth-like mixture of 80 percent nitrogen and 20 percent oxygen, pressurized to one bar, would reduce the risk of fire. Moreover, a mixture of this type avoided many other troubles associated with pure oxygen—eye irritation, hearing loss, and a clogging of the chest, for example—but the complexities of building such a system threatened to make it prohibitively heavy.

The astronauts’ space suits complicated the issue yet further. “To walk on the Moon,” wrote Deke Slayton, then-head of the Flight Crew Operations Directorate (FCOD), in his autobiography, Deke, “you needed to get out of the spacecraft…and with a mixed-gas system you’d have to pre-breathe for hours, lowering the pressure and getting the nitrogen out of your system so you didn’t get the bends. Of course, if there was a real emergency and you had to use the suit, you’d really have been in trouble.”

Video Credit: NASA

Other worries surrounded the Apollo CM’s hatch: a complex device which actually came in two cumbersome pieces: an inner section, which opened into the cabin, overlaid by an outer section. North American wanted to build a single-piece hatch, fitted with explosive bolts, but NASA felt that this might increase the risk of it misfiring on the way to the Moon. By adopting an inward-opening hatch, cabin pressure would keep it tightly sealed in flight, but difficult to open on the ground. As the hands of fate turned on Apollo 1, pure oxygen and an immovable hatch, coupled with a mysterious ignition source, would spell death for Grissom, White and Chaffee.

With a pessimistic air of foreboding, the three astronauts crossed the gantry at Pad 34 early on the afternoon of 27 January 1967. According to their secretary, Lola Morrow, all three men were unusually subdued and in no mood for the so-called “plugs-out” test. (Morrow herself scornfully referred to Project Apollo as “Project Appalling.”)

Ed White (foreground) and Roger Chaffee observe Gus Grissom (next to Apollo spacecraft mockup) during water egress exercises in June 1966. Photo Credit: NASA

The previous evening, their backup crew—Wally Schirra, Donn Eisele, and Walt Cunningham—had sat aboard the spacecraft for a “plugs-in” test, with Apollo dependent upon electrical power from ground support equipment and the hatch left open. After emerging from the test, Schirra took Grissom to one side. He hated the Block 1 design. “If you get the slightest glitch,” Schirra told his longtime friend, “get outta there. I don’t like it.”

Communications with the nearby blockhouse, manned by astronaut Stu Roosa, caused difficulties from the start. Grissom was so frustrated that he even asked Apollo Spacecraft Program Office (ASPO) manager Joe Shea, at breakfast, to sit in the cabin with them and gain a manager’s perspective of the problems. Shea weighed up the pros and cons of rigging up an extra headset and squeezing himself, in shirtsleeves, into Apollo’s lower equipment bay, but decided against it. Even Deke Slayton considered sitting in the cabin with them, but elected to remain in the blockhouse to monitor the progress of the test.

Build-up of the Saturn IB gets underway at Pad 34 in April 1968, ahead of Apollo 7, the giant rocket’s first mission with a human crew. A similar booster would have launched Apollo 1 into low-Earth orbit. Photo Credit: NASA

Grissom took the Command Pilot’s seat on the left side of the cabin and quickly became aware of a foul odor—like soured buttermilk—and technicians scrambled to the spacecraft to take air samples. Nothing was found to be amiss. Roger Chaffee climbed aboard, taking the right-side seat as Pilot, and Ed White entered last, plopping into the center seat in his role as Senior Pilot. The Command Module’s hatch was closed, the “boost cover” of the Saturn IB rocket was sealed and pure oxygen was steadily pumped into the cabin.

As the afternoon wore on, niggling problems hindered the test. A high oxygen flow indicator triggered the master alarm, time and time again, and communications with Roosa were so bad that at one point Grissom exploded: “How are we going to get to the Moon if we can’t talk between two or three buildings?” At 4:25 p.m. EST, a problem arose with a live microphone, which could not be switched off.

AS-611~2 Retro Space Images post of a NASA photo of Apollo astronaut Gus Grissom posted on AmericaSpace
Gus Grissom tests the fit of his spacesuit. Photo Credit: NASA / Retro Space Images

NASA Test Conductor Clarence “Skip” Chauvin later recalled that communications deteriorated so badly that he could hardly hear the astronauts’ voices. Eventually, the test was put on hold at 5:40 p.m. Forty minutes later, after more communications headaches, controllers prepared to transfer Apollo 1 to its internal fuel cells…whereupon the countdown was halted, yet again.

Suddenly, and without warning, controllers noticed the crew’s biomedical readings jump. This was a tell-tale indicator of increased oxygen flow in their space suits. At the same time, around 6:30:54 p.m., other sensors registered a brief power surge aboard Apollo 1. Ten seconds later came the first cry from the spacecraft.

Less than two years before the fire, Ed White had made history as America’s first spacewalker. Photo Credit: NASA

It was Roger Chaffee’s voice.

And it was just one word. “Fire!”

In the windowless blockhouse at Pad 34 at Cape Kennedy, Deke Slayton heard Chaffee’s cry and glanced over to a monitor which showed the hatch window of the CM. Now, as the normally dark hatch window turned white, Slayton realized that something drastically abnormal was occurring. At 6:31 p.m., Chaffee called “Fire” and, within seconds, further frantic calls emanated from Apollo 1. “We’ve got a fire in the cockpit,” Chaffee yelled. “Let’s get out. We’re burning up!” Finally, there was a blood-curdling shriek.

Roger and Martha Chaffee, with their children Sheryl and Stephen. Photo Credit: Astronaut Memorial Foundation

On the first floor of Pad 34, technician Gary Propst could clearly see Ed White on his monitor. The astronaut’s arms were raised over his head, fiddling to open the CM’s heavy, two-piece hatch. Propst could not understand why the men did not simply blow the hatch, little realizing that its inherent design made this impossible. White had to use a ratchet to laboriously release six bolts spanning the circumference of the inner section of the hatch.

Years later, astronaut Dave Scott—who had trained as White’s backup between March and December 1966—wrote in his autobiography, Two Sides of the Moon, that during training, he and White weightlifted the hatch over their heads whilst lying supine in their Apollo couches. Now, in the few seconds he had available before being overcome by smoke, White barely had chance to begin loosening the first bolt.

Video Credit: AmericaSpace

Tragically, it made little difference. In normal conditions, it would require 90 seconds at best, and even the super-fit White had been unable to do it in less than two minutes during training. However, fire was gorging Apollo 1 and the accumulation of hot gases sealed the hatch shut with tremendous force. No man on Earth could possibly have opened the hatch under such circumstances.

Investigators would later discover that the fire began somewhere under Grissom’s seat, on the left side of the cabin, perhaps in the vicinity of some chafed and unprotected wiring. Once sparked in Apollo 1’s pure oxygen atmosphere, it fed hungrily and quickly exploded into an inferno. Other combustible objects—including Velcro pads, nylon nets, polyurethane pads, and paperwork—fanned the flames.

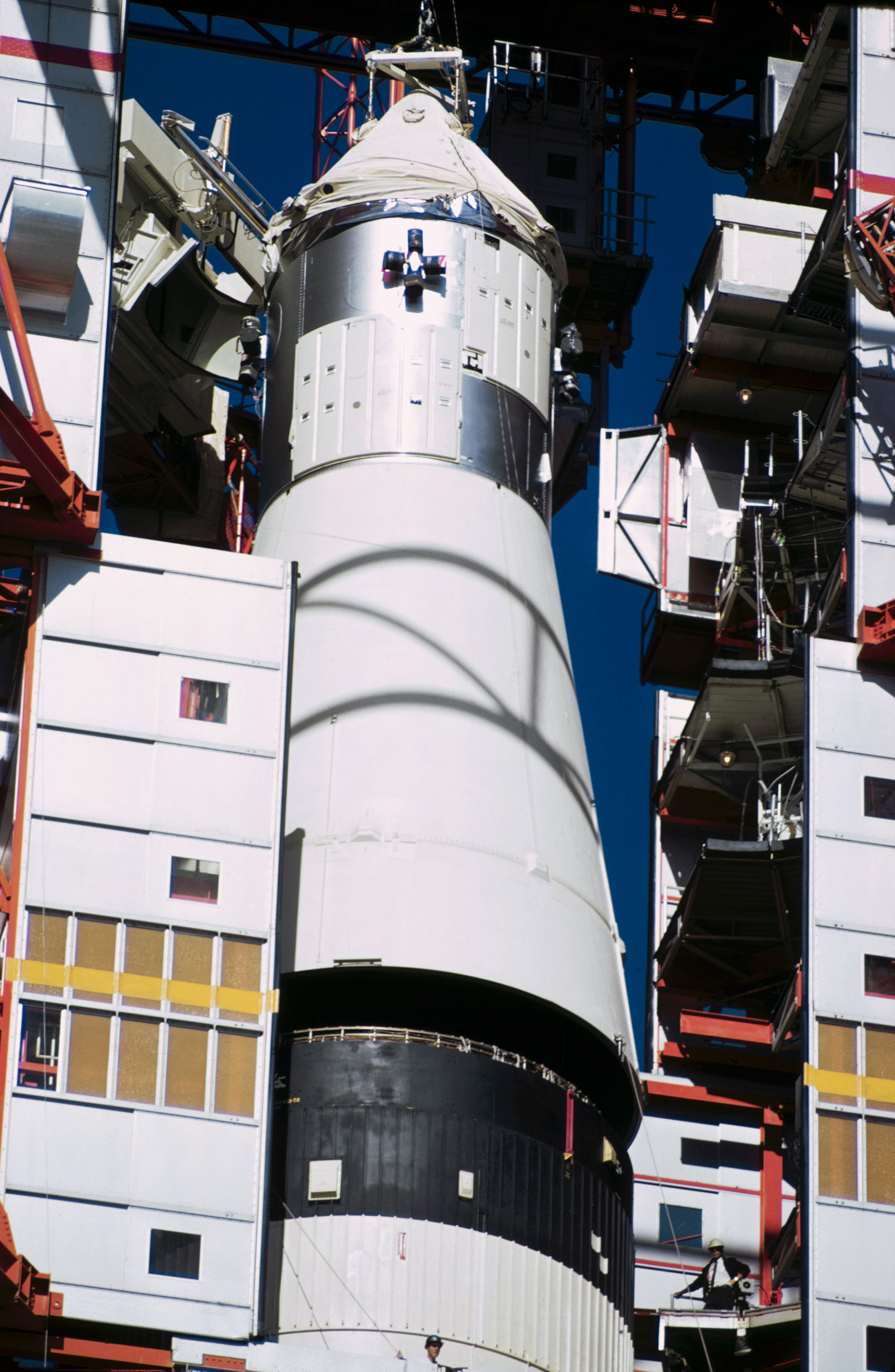

The Apollo 1 spacecraft atop its Saturn IB booster at Pad 34. Photo Credit: NASA

The astronauts themselves had taken a Styrofoam block into the cabin to relieve the pressure against their backs, but this exploded like a bomb in the pure oxygen. “At such pressure, and bathed by pure oxygen,” wrote Grissom’s biographer, Ray Boomhower, in Gus Grissom: The Lost Astronaut, “a cigarette could be reduced to ashes in seconds and even metal could burn.”

At length, pressures exceeded Apollo 1’s design limits and the conical capsule ruptured at 6:31:19 p.m., filling the Pad 34 white room with thick smoke. By now, the poisonous fumes had asphyxiated the three astronauts to death. Not far away, pad leader Don Babbitt sprang from his desk and barked at lead technician Jim Greaves to get the three men out of the spacecraft. But it was hopeless. The waves of heat and pressure were so intense that the would-be rescuers were repeatedly driven back.

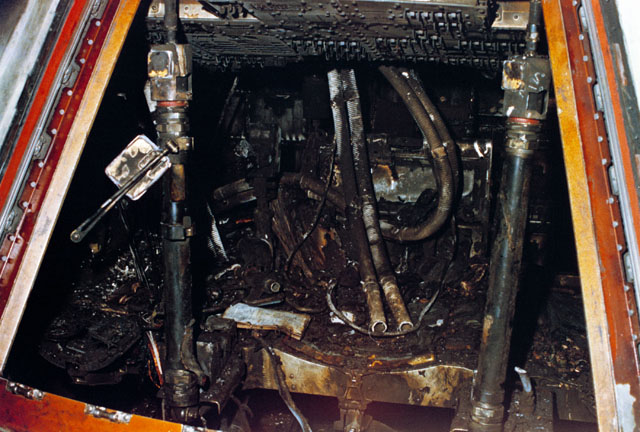

The shocking interior of the Apollo 1 command module after the fire. Photo Credit: NASA

“The smoke was extremely heavy,” Babbitt later recalled. “It appeared to me to be a heavy thick grey smoke, very billowing, but very thick.” None of the pad crew could see far beyond the end of their noses and they had to run their hands over the outside of the Saturn IB boost cover to find holes into which they could insert tools to open the hatch.

No less than 27 technicians were treated that evening by the Cape’s dispensary for the effects of inhalation. Don Babbitt had to order Jim Greaves outside at one point, lest he pass out. Firefighters eventually opened the hatch and the would-be saviors beheld a hellish scene of destruction.

Less than two years after the fire, Apollo 7 finally rose to orbit from Pad 34 to begin the fulfilment of President John F. Kennedy’s pledge to land a man on the Moon. It was the last launch ever conducted from Pad 34. Photo Credit: NASA

By the flickering glimmer of a flashlight, they could see little but burnt wiring and an incinerated interior. According to firefighter Jim Burch, it took a few seconds before the ethereal calmness convinced them that Grissom, White and Chaffee were gone. It was 6:37 p.m., barely five-and-a-half minutes since Chaffee’s initial shout. America’s dream of landing on the Moon before the decade’s end was in tatters. Choking over the phone to Deke Slayton, Babbitt could not find the words to describe what he saw.

Slayton and flight surgeon Fred Kelly arrived at the base of Pad 34 a few minutes later. They realized that it would take hours to remove the dead men from Apollo 1, because the heat had caused everything to melt and fuse together. Moreover, there remained a very real risk that the heat could accidentally trigger the Saturn IB’s escape tower and the pad was cleared of all personnel. Not until the early hours of 28 January 1967 were the bodies removed. None of them had suffered life-threatening burns and all had died from asphyxia when their oxygen hoses burned and their suits rapidly filled with poisonous smoke.

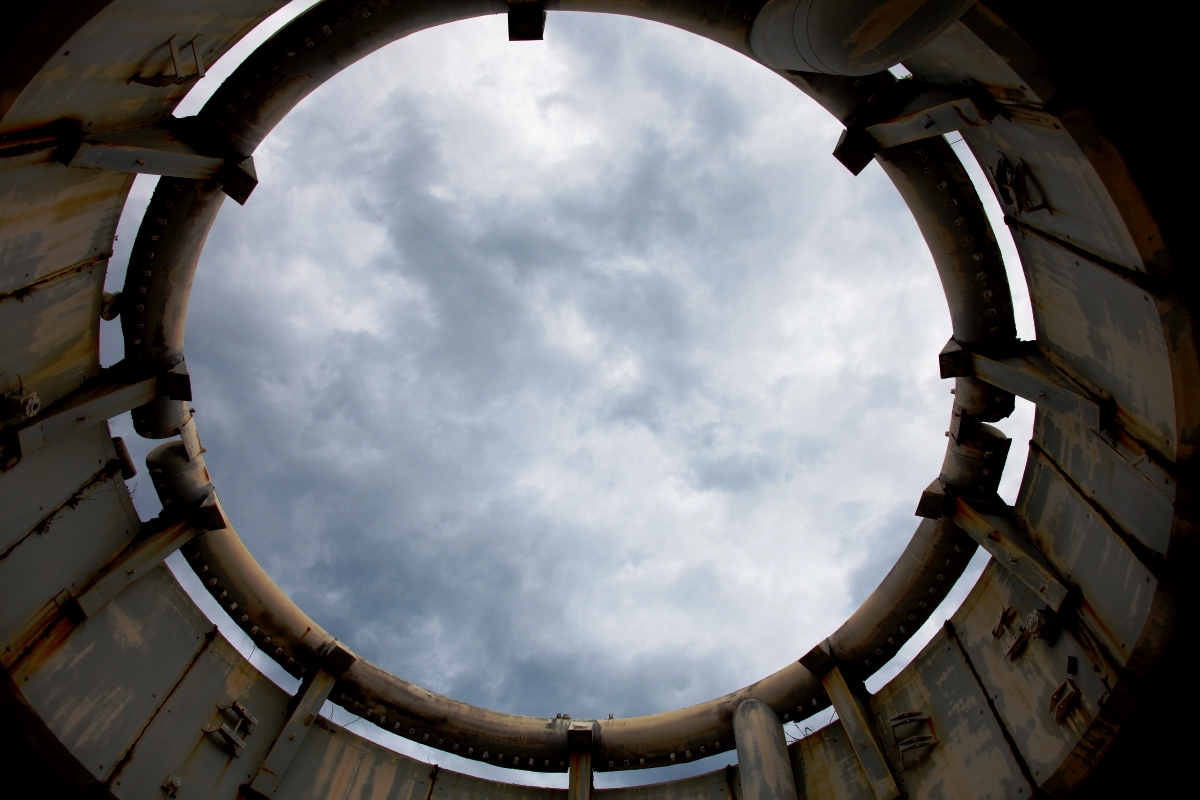

Eerie view at the deserted Pad 34 complex. Photo Credit: Alan Walters/awaltersphoto.com

In his autobiography, Deke, Slayton described it the “worst day” of his career, and even the normally teetotal astronaut Frank Borman admitted that he went out and got drunk after the accident. “I’m not proud to admit it,” Borman once said, “but…we ended up throwing glasses, like a scene out of an old World War One movie.” The wives of the three dead men—Betty Grissom, Pat White and Martha Chaffee—later sued North American for its shoddy spacecraft.

For Project Apollo, almost two years would elapse before three astronauts would board the spacecraft in October 1968 and complete its first piloted flight in low-Earth orbit. By then, the mighty Saturn V booster had also been put through its paces and, over the course of the following months, America would deliver Apollo to lunar orbit and conduct a critical series of steps which enabled Neil Armstrong, Mike Collins and Buzz Aldrin to accomplish humanity’s most exalted goal in July 1969. Two years later, in the summer of 1971, as he completed the last of his three Moonwalks, Apollo 15 Commander Dave Scott laid a small aluminum figurine and plaque on the lunar soil.

Haunting view of the deserted Pad 34 site, seen from the Ground Launch Support Building. Here, on 27 January 1967, America’s goal of reaching the Moon was placed in jeopardy in the most tragic way. Photo Credit: NASA

It bore the names of all the known U.S. astronauts and Soviet cosmonauts who had died whilst advancing our future in space. The list included 14 names, including fallen Gemini IX pilots Elliot See and Charlie Bassett, the world’s first human spacefarer, Yuri Gagarin, and the recently-deceased trio of cosmonauts from Russia’s ill-fated Soyuz 11 mission to the Salyut 1 space station.

And within that list were the names of Apollo 1 Command Pilot Virgil “Gus” Grissom, Senior Pilot Ed White and Pilot Roger Chaffee: three men whose lives were cut short in their prime, who had already forged names for themselves and who might, had circumstances been different, have ended up planting their own bootprints into the lunar regolith.

.
