‘Serious Problems Here’: Remembering Gemini VIII, OTD in 1966 (Part 2)

Gemini VIII’s nose edges into the docking collar of the Agena target. Although this mission achieved a successful rendezvous and docking, it fell victim to violent oscillations, due to a stuck-on thruster, which almost cost Neil Armstrong and Dave Scott their lives. Photo Credit: NASA

Fifty-five years ago, this week, NASA astronauts Neil Armstrong and Dave Scott—the only Gemini crew who would both someday walk on the Moon—accomplished a key goal in America’s bid to land a man on the Moon by successfully rendezvousing and docking with an unmanned Agena-D target vehicle in Earth orbit.

Gemini VIII marked the first time that a manned vehicle had achieved physical contact with another target in space. However, the situation aboard Gemini VIII was far from perfect and, in the hours after Armstrong and Scott accomplished their core objective, would dramatically worsen to the point that the astronauts almost lost their lives.

Video Credit: NASA

A distinct lack of available tracking stations across the flight path had already resulted in “spotty” communications with the Mission Operations Control Room (MOCR) at the Manned Spacecraft Center (MSC) in Houston, Texas. In fact, only two ship-based stations were supporting the flight, the Rose Knot Victor and the Coastal Sentry Quebec, together with a land site in Hawaii.

Shortly before one loss of contact, at around 6:35 p.m. EST on 16 March 1966—just seven hours into the planned three-day mission—Capcom Jim Lovell radioed the Gemini VIII crew. If problems arose, he told them, they should immediately deactivate the Agena with Command 400 and assume manual control with the Gemini. It was a standard call. Lovell could scarcely have imagined that a potential disaster would soon engulf the mission.

Neil Armstrong (foreground) and Dave Scott head to the pad on 16 March 1966. Photo Credit: NASA

Half an hour after docking with the Agena, Scott instructed the target to roll them 90 degrees, and Armstrong, in the command pilot’s seat, told Lovell that it had “gone quite well.” The call came a few seconds before Gemini VIII passed out of radio contact with the ground. Alone, the astronauts electronically activated the Agena’s tape recorder. Shortly thereafter, their attitude indicator showed that they were in an unexpected, and almost imperceptible, roll of about 30 degrees.

“Neil,” called Scott, “we’re in a bank.” Were the Agena’s attitude controls misbehaving? Or was it a problem with the target vehicle’s software? Certainly, Gemini VIII’s own thrusters were now switched off and the assumption could safely be made that the Agena was at fault. What they did not know was that one of their own thrusters—the No. 8 thruster—had short-circuited and become stuck into its “on” position. Unaware, Scott cut off the Agena’s thrusters, whilst Armstrong reactivated the Gemini’s thrusters in an attempt to stop the roll and bring the combination under control.

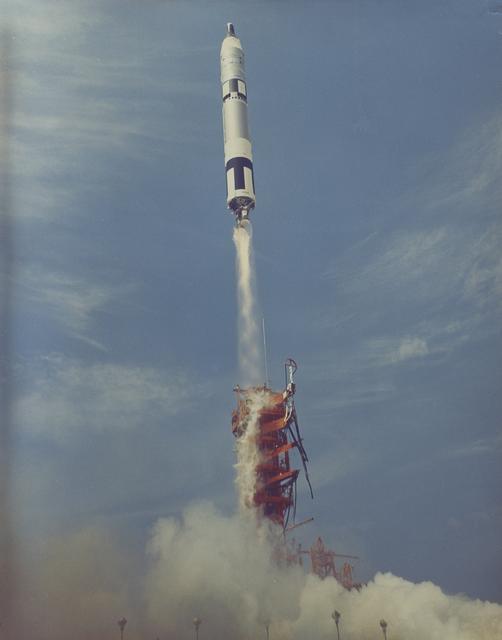

Gemini VIII was launched atop a Titan II rocket on 16 March 1966. Photo Credit: NASA

For a few minutes, his effort succeeded.

Gradually, the craft stabilized. Then, as Armstrong started to reorient them into their correct position, the unwanted motions resumed, albeit much faster than before and along all three axes. Perplexed, the men jiggled the Agena’s control switches, then those of the Gemini, in a fruitless attempt to isolate the problem. Glancing at his instrument panel, Scott noticed that their craft’s attitude propellant had dropped to just 30 percent. At this stage, it dawned on the astronauts that the fault was with their craft. “We had to disengage from the Agena,” Scott later wrote in his memoir, Two Sides of the Moon, co-authored with cosmonaut Alexei Leonov, “and quickly.”

This posed its own problems, since both craft were rapidly rotating and could hit each other. Quickly, Scott set the Agena’s recording devices to allow flight controllers to remotely command it—a crucial step, since, after undocking, the target would be dead. “No one would ever know what the problem had been or how to fix it,” he wrote. His prompt action saved the Agena and preserved it not only for subsequent investigations, but also for a remarkable “double rendezvous” on the Gemini X mission in July.

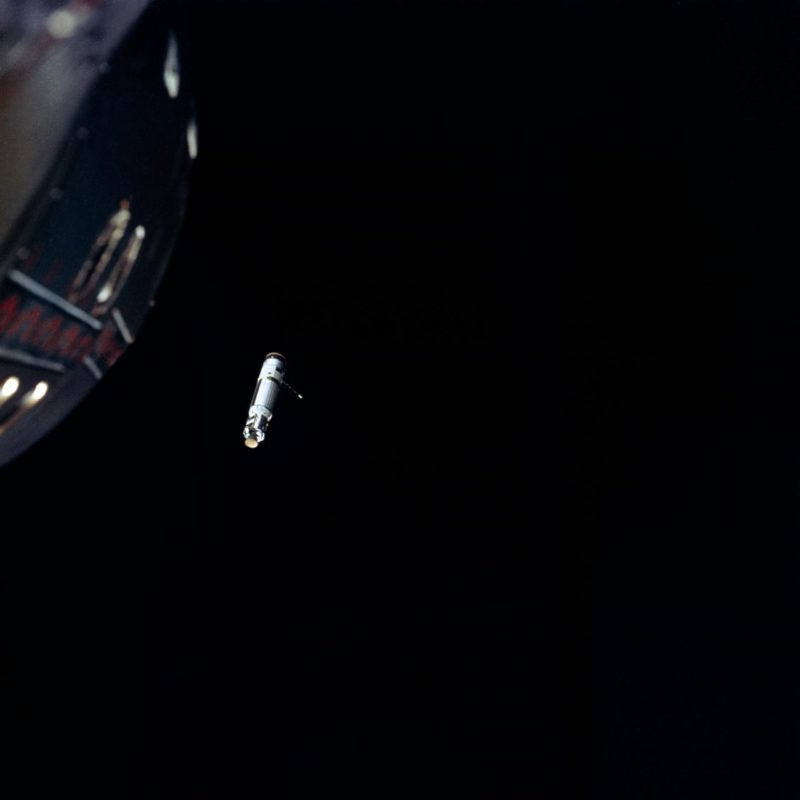

Neil Armstrong and Dave Scott achieve visual contact with the Agena-D target vehicle. In this image, the target was only 260 feet (79 meters) away. Photo Credit: NASA

Armstrong and Scott were still out of radio communications with the ground. They duly undocked from the Agena and fired a long burst of the Gemini’s thrusters to pull away. However, their craft, now free, began to spin more violently, in roll, pitch, and yaw axes. Since the stuck-on No. 8 thruster was no longer turning the entire combo, the oscillations were correspondingly worse. At length, high above southeast Asia, they came into contact with the Coastal Sentry Quebec. Controllers were stunned at 6:58 p.m. when Dave Scott’s urgent call came through.

“We have serious problems here,” he reported. “We’re tumbling, end over end. We’re disengaged from the Agena.”

Jim Fucci, the communicator aboard the ship, asked them about the problem. Quickly, and with characteristic calmness, Armstrong reported that they were continuously increasing in a left roll and unable to turn anything off. Fucci alerted Houston that Gemini VIII was suffering “pretty violent oscillations.” The resultant three-way conversation with the MOCR meant that several seconds elapsed before Flight Director John Hodge picked up all the details; Fucci had to repeat that Armstrong was “in a roll and he can’t stop it.”

Seated at their consoles in the Mission Operations Control Room (MOCR) in Houston, Texas, Capcoms Jim Lovell (left) and Bill Anders monitor the mission. Photo Credit: NASA

In orbit, Armstrong threw circuit breakers to cut electrical power and hence the flow of propellant to the attitude thrusters, including troublesome No. 8. However, with no friction or counter-firing thrusters to halt it, the spinning continued, reaching a horrifying 60 revolutions per minute. Checklists, flight plans and procedural charts were flung around Gemini VIII’s cabin by the centrifugal force and the unfiltered sunlight blazed through the astronauts’ windows with startling regularity.

To Scott, it was like a constant strobe light. Additionally, the rotation was brought both astronauts close to physically blacking out and they struggled to read their instruments. Physiologically, they were suffering from a complete loss of orientation, together with an involuntary rhythmic motion of their eyes.

This pre-launch view of Dave Scott (foreground) and Neil Armstrong aboard Gemini VIII, earlier in March 1966, gives a clear impression of the cramped conditions aboard the spacecraft. Photo Credit: NASA

Aware that the problem was with his own spacecraft, Armstrong had little choice but to use Gemini VIII’s 16 re-entry thrusters to steady them. This was easier said than done, for the re-entry controls were in a particularly awkward position, directly above his head. Making matters even worse, they were on a panel with around a dozen toggles.

“With our vision beginning to blur,” wrote Scott, “locating the right switch was not simple.” Months of repetitive training had allowed the astronauts to know each switch, intuitively, but Scott was amazed at Armstrong’s flying skill as he simultaneously reached for the toggle and grappled with the spacecraft’s hand controller. His efforts succeeded, albeit at the expense of 75 percent of Gemini VIII’s propellant.

Dave Scott (left) and Neil Armstrong breathe the fresh air of Earth as the hatches of Gemini VIII are opened after splashdown. Photo Credit: NASA

Mission rules decreed that, once the re-entry controls had been activated, the flight was aborted. Ten hours into their planned three-day mission, Armstrong and Scott were on their way home.

Loading the re-entry software into the spacecraft’s 4,000-word computer memory was difficult, particularly as it was already overloaded from the rendezvous with the Agena. This required Scott to erase the rendezvous and docking programs and feed the re-entry data by means of a keypad and auxiliary tape memory unit. Punching in a series of nine lines of seven-digit numbers, he checked and cross-checked his work with Jim Fucci, whose admirable calmness under duress made those critical moments seem like “taking a stroll in the park.”

Gemini VIII is hauled aboard the destroyer, U.S.S. Leonard F. Mason. Photo Credit: NASA

Television stations began interrupting their programs—Batman and, ironically, Lost in Space—to provide live coverage. Original plans had called for Gemini VIII to splash down in the Atlantic and be recovered by the aircraft carrier Boxer, but the emergency guided them instead to a point in the western Pacific, 500 miles (800 km) east of Okinawa. A naval destroyer, the Leonard F. Mason, based off the coast of Vietnam, was assigned to this splashdown zone and her crew began steaming toward the predicted point.

The bitterly disappointed astronauts ran through their pre-retrofire checklist and tests of Gemini VIII’s thrusters finally identified the fault with No. 8. Scott later described the thrusters as not exhibiting “a consistent, linear problem … it was really screwed up.” In effect, the thruster had been “on” when it should have been “off” and vice versa.

Video Credit: Smithsonian Channel

At 9:45 p.m. EST, Gemini VIII’s retrorockets fired above south-central Africa, in orbital darkness. This gave the astronauts no visual cues for alignment. The spacecraft re-entered over the high peaks of the Himalayas and, as it descended, Scott could see nothing through his window, save a pinkish-orange glow of superheated plasma outside. After a while, he spotted high-level haze and, eventually, the glint of water.

Ten hours and 41 minutes after leaving Cape Kennedy—at 10:22 p.m. EST on 16 March, but a little after midday on 17 March in the western Pacific—Gemini VIII hit the choppy waters with a harsh thump. Seasickness was an inevitability as the spacecraft’s windows rhythmically rolled and pitched, but the men stepped smartly through the shutdown of electrical and other systems. They had forgotten to take their anti-seasickness pills. “When Mission Control told us about 3-foot waves,” Scott recalled, “they forgot to mention the 20-foot swells!”

Neil Armstrong (left) and Dave Scott on the deck of the recovery vessel, Leonard F. Mason, on 17 March 1966. Photo Credit: NASA

First on the scene were U.S. Air Force Pararescuemen (PJs) from 33 Air Rescue Service, who had scrambled out of Naha Air Force Base, Okinawa, aboard a Grumman HU-16 Albatross flying boat. They successfully parachuted into the Pacific Ocean, applied the capsule flotation collar to stabilize Gemini VIII and were first to tend to the immediate medical needs of Armstrong and Scott.

They were followed, several hours later, by the arrival of the Mason. In fact, the destroyer’s crew had been less than enamored when they were assigned to be one of the backup recovery vessels. They had just finished a seven-week tour in Vietnam and had been given a brief spell of liberty in Okinawa. Now they were as relieved as the rest of the world that Armstrong and Scott were safe.

Armstrong and Scott pose with Pararescue team members E.M. Neil (back center), L.D. Huyett (kneeling left) and G.N. Moore (kneeling right) after the safe recovery of Gemini VIII. Photo Credit: NASA

In the weeks that followed, post-flight analysis removed any blame from the shoulders of the astronauts. Still, astronauts Walt Cunningham and Tom Stafford expressed criticism; the former pointing to flaws in both Armstrong and Scott’s performance, and the latter arguing that undocking from the Agena had been the wrong decision.

Flight Director Gene Kranz, who supervised Gemini VIII’s re-entry, saw things differently. He regarded it as a failure of the ground controllers in having few contingency procedures to cover the docked phase of the mission. Other astronauts, including Frank Borman and Wally Schirra, praised the actions of the crew as having saved the mission from disaster. Without their safe return, the erroneous belief that the Agena was to blame could have diseased Project Gemini’s final months and made it difficult for Project Apollo—with its emphasis on rendezvous and docking—to move confidently ahead. In Scott’s words, it could have been “a showstopper.”

Armstrong and Scott arrive at Hickam Field, Hawaii, on 21 March 1966. Photo Credit: NASA

The performance of Neil Armstrong and Dave Scott, a half-century ago this week, was nothing short of remarkable. They had completed a flawless docking with the Agena and, but for the stuck-on No. 8 thruster, might have gone on to complete an equally flawless three-day mission.

That neither man was to blame for the events of Gemini VIII is amply highlighted by their subsequent careers: Armstrong was reassigned as backup commander of Gemini XI, whilst Scott was named as senior pilot on the backup crew for the first manned Apollo mission. In time, they would venture further, becoming the only Gemini crew whose both members would someday set foot on the Moon.
