United Launch Alliance Delivers Next Generation GPS Satellite to Orbit on Delta-IV’s 26th Mission

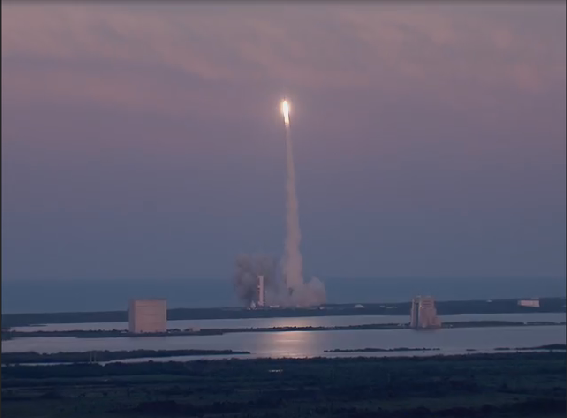

ULA's Delta-IV lofting the GPS IIF-6 satellite to orbit on the Delta's 26th flight. Screen Grab Credit ULA / AmericaSpace
ULA’s Delta-IV lofting the GPS IIF-6 satellite to orbit on the Delta’s 26th flight. Screen Grab Credit: ULA / AmericaSpace

A beautiful Florida sunset was outdone by a United Launch Alliance (ULA) Delta-IV rocket this evening with the successful delivery of the next Global Positioning System (GPS) IIF satellite to a semi-synchronous 11,000-mile-high circular orbit for the U.S. Air Force. Liftoff of the 206-foot-tall rocket on its 26th flight occurred as expected at 8:03 p.m. EDT from Cape Canaveral Air Force Station Space Launch Complex-37, kicking off ULA’s fifth launch of 2014 and 82nd overall. The mission also marks ULA’s 32nd launch for the U.S. Air Force and the 53rd operational GPS satellite launch on a ULA Rocket.

GPS IIF-6 is one of the next-generation GPS satellites, incorporating various improvements to provide greater accuracy, increased signals, and enhanced performance for users. Image Credit: ULA
GPS IIF-6 is one of the next-generation GPS satellites, incorporating various improvements to provide greater accuracy, increased signals, and enhanced performance for users. Image Credit: ULA

The 3,600-pound next generation GPS satellite, designated GPS IIF-6, is the sixth member of the planned 12-strong constellation of Block IIF satellites first launched in May 2010; the latest in an “interim” class of GPS satellites to keep a critical worldwide positioning, velocity, and timing asset operational until the next-generation GPS Block IIIA comes online later in 2014. They continuously transmit digital radio signals pertaining to the exact time, using atomic clocks, and exact location of the satellites. Each GPS IIF satellite is designed to remain operational for 12 years.

The spacecraft boasts improved-accuracy positioning systems, a reprogrammable processor capable of future upgrades, an interference-free civilian signal for commercial aviation search-and-rescue, and better resistance to electronic jamming through the new “M-code” military GPS signal.

“As each IIF satellite becomes operational, we continue the seamless transformation of the GPS constellation into an even more accurate, reliable, and durable navigation resource for the U.S. military and the global civilian user community,” said Craig Cooning, vice president and general manager of GPS Block IIF prime contractor Boeing Space & Intelligence Systems. “Our efficient pulse-line manufacturing process, adapted from Boeing’s commercial airplane production lines, also ensures that we deliver each spacecraft on time and on cost.”

As outlined in ULA’s GPS IIF-6 Mission Overview: “GPS utilizes 24 satellites, in six different planes, with a minimum of four satellites per plane, positioned in orbit approximately 11,000 miles above the Earth’s surface. The satellites continuously transmit digital radio signals pertaining to the exact time (using atomic clocks) and exact location of the satellites. The GPS IIF series have a design life of 12 years. With the proper equipment, users can receive these signals to calculate time, location, and velocity. The signals are so accurate that time can be measured to within a millionth of a second, velocity within a fraction of a mile per hour, and location to within feet. Receivers have been developed for use in aircraft, ships, land vehicles, and to hand carry.”

The launch itself appears to have gone by the book, with ignition of the vehicle’s single Aerojet Rocketdyne RS-68 liquid oxygen and hydrogen engine producing 663,000 pounds of propulsive yield at T-5 seconds. The command to fire the ATK-made GEM-60 boosters occurred at T-0.01 seconds, and release of the hold-down clamps occurred at T-0, letting the Delta-IV fly atop a brilliant pillar of fire out over the Atlantic Ocean. Following liftoff, the launcher then performed an automated pitch, yaw, and roll program maneuver to establish itself on the proper 44.55-degree flight azimuth, roaring toward space and shattering the sound barrier at T+47 seconds as it continued to accelerate skyward.

The GPS IIF-6 payload is encapsulated in a 4-meter-diameter payload fairing in preparation for launch on a ULA Delta IV. Credit: ULA
The GPS IIF-6 payload is encapsulated in a 4-meter-diameter payload fairing in preparation for launch on a ULA Delta IV. Credit: ULA



The boosters were jettisoned at about T+100 seconds, at which point the RS-68 engine continued to fire for another three minutes to propel the stack toward orbit. At T+4:15 seconds the RS-68 had done its job, allowing for ignition of the second stage Pratt & Whitney Rocketdyne RL-10B2 engine and its 24,750 pounds of thrust to continue pushing GPS IIF-6 toward orbit for another 15 minutes and 30 seconds, at which point the RL-10B2 engine achieved an initial, elliptical “parking orbit” and shut down.

In a couple hours (approximately 3 hours and 3 minutes into the mission) the RL-10B2 will ignite for its second burn, which will last a little under 2 minutes to position GPS IIF-6 correctly for separation from its 38.5-foot-long Payload Attach Fitting (PAF) at about 3 hours, 15 minutes, and 50 seconds into the flight. At that time GPS IIF-6 will be in position to begin operations.

The U.S. Air Force awarded Lockheed Martin a $1.4 billion contract in May 2008 to develop the Block IIIA network, which may eventually consist of as many as 32 satellites. At present, the Air Force has formally contracted for four Block IIIAs. With 500 times the transmitter power of current systems, Block IIIA will also benefit from new navigational warfare capabilities, enabling them to shut off GPS service to limited geographical locations whilst maintaining service to U.S. and allied forces. The system is operated and controlled by the 50th Space Wing, located at Schriever Air Force Base, Colo.

With GPS IIF-6 delivered to orbit ULA and the U.S. Air Force can now focus on launching GPS IIF-7 in late July and GPS IIF-8 in October. Both will be lofted by ULA’s Atlas V 401 boosters from Space Launch Complex (SLC)-41 at Cape Canaveral Air Force Station.
