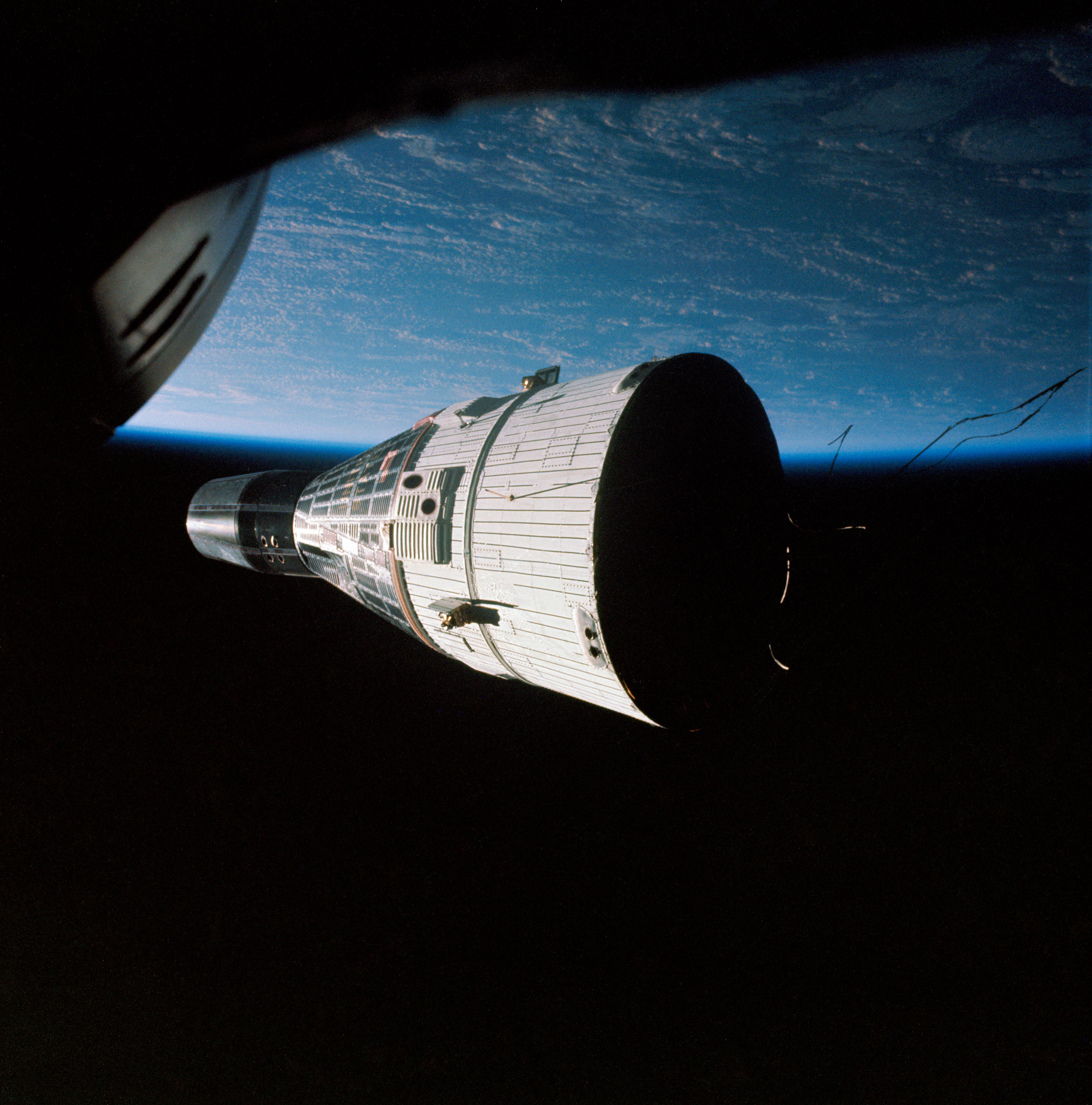

Just before Christmas in 1965—50 years ago, next week—a pair of Gemini spacecraft serenely circled Earth together and in close proximity. Aboard Gemini VII, astronauts Frank Borman and Jim Lovell were midway through a record-breaking 14-day mission to spend the equivalent of a long-duration lunar voyage in Earth orbit, whilst aboard Gemini VI-A fellow astronauts Wally Schirra and Tom Stafford had taken the lead in executing the world’s first rendezvous between a pair of piloted vehicles in space. It was a critical step toward achieving the late President Kennedy’s goal of human bootprints on the Moon before 1970. Although the Soviet Union had managed to bring two spacecraft close together during the Vostok era, they had not performed true rendezvous. Yet the Gemini success came at the end of two disappointing months which saw a rocket explode, a pair of manned missions combined into one, a vice president fall asleep in the simulator, and a hairy on-the-pad launch abort which could easily have spelled death for Schirra and Stafford.
Flying for longer periods in space, according to flight surgeon Chuck Berry, had “qualified man to go to the Moon.” In August 1965, astronauts Gordo Cooper and Pete Conrad returned in good physical shape after eight days in orbit. Next up, in late October, Schirra and Stafford would spend just two days aloft, but would actively bring their Gemini VI craft close to a Lockheed-built Agena-D target vehicle, launched atop an Atlas booster. The importance of the flight was such that both the prime crew and their backups, Virgil “Gus” Grissom and John Young, were highly experienced. Although it would be Tom Stafford’s first mission, he was already recognized as an expert in space rendezvous. Having said this, Grissom wanted command of the first Apollo mission and pursued it relentlessly. In his autobiography, We Have Capture, Stafford noted that although Young sat through simulations with them, Grissom was often absent, racing cars or boats. Following Gemini VI would come the 14-day Gemini VII, sometime early in 1966, with Borman and Lovell.
All that changed on 25 October 1965.
Although the so-called Gemini-Agena Target Vehicle (GATV) was a fundamental aid in demonstrating rendezvous, docking and performing linked exercises in space, doubts about its reliability were prevalent within NASA. Some managers felt that it could not be trusted to execute maneuvers with a docked Gemini, although Wally Schirra lobbied for it to fly. He also wanted a firing of the Agena’s less powerful secondary propulsion system, although this was not initially incorporated into the Gemini VI flight plan.
First up would be the Agena, mounted atop its Atlas rocket, from Cape Canaveral’s Pad 14, boosted into a 200-mile (320-km) circular orbit. One hundred minutes later, Schirra and Stafford would follow aboard Gemini VI from Pad 19, their Titan II injecting them into a lower orbit. “Two hundred and seventy degrees behind the Agena,” wrote Stafford, “you’d make a series of maneuvers that would eventually raise the orbit of the Gemini to a circular one below the Agena. Then you’d glide up below the Agena on the fourth revolution. At that time the crew would make a series of maneuvers to an intercept trajectory, then break to station-keeping and docking.” This docking would occur over the Indian Ocean—some six hours into the mission—and after which Schirra and Stafford would remain linked for seven hours and return to Earth following their battery-restricted two-day flight. The crew wanted to relight the Agena’s engine whilst docked, but NASA vetoed it as too ambitious.
The rendezvous, Schirra explained years later, utilized the Hohmann Transfer, which he described as “the most efficient, quickest and prettiest way to do a rendezvous,” but added that “it is also intolerant of error; if you blow the rendezvous, fuel and time constraints won’t permit another try.” During their training in the second half of 1965, the astronauts practiced maneuvers again and again, plotting them on boards. In total, they did more than 50 practice runs and spent hours rehearsing the docking with the Agena in a Houston, Texas, trainer. “Housed in a six-story building,” wrote Schirra in his memoir, Schirra’s Space, “it consisted of a full-scale Gemini cockpit and the docking adaptor of the Agena. They were two separate vehicles in an air-drive system that moved back and forth free of friction. We exerted control in the cockpit with small thrusters, identical to those on the spacecraft. We could go up and down, left and right, back and forth. The target could be maneuvered in those planes as well, though it was inert. It would move if we pushed against it, just as we assumed the Agena would do in space.”
On one occasion, Schirra hosted Vice President Hubert Humphrey in the pilot’s seat. Humphrey asked if their voices could be heard from outside the trainer. When Schirra replied that it was sound-proofed, Humphrey asked if Schirra minded him taking a nap. When Humphrey awoke, he asked Schirra to tell him what had happened so that he could tell the people outside. “I was a fan of Hubert Humphrey from that day on,” wrote Schirra.
Gemini VI was the last of the series to run solely on battery power, thus limiting the two astronauts to no more than 48 hours in space. Although by September 1965 NASA was pushing for just one day aloft, if all objectives were completed. “Secondary” experiments were kept to a barebones minimum. Schirra’s attitude was that rendezvous was a significant challenge and left no time to “play” with experiments.

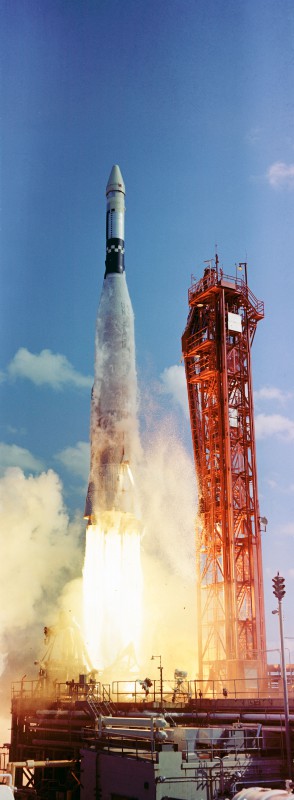

Early on 25 October, out at Pad 14, a team from General Dynamics oversaw the final hours of the Atlas-Agena countdown. The Atlas booster, tipped with the thin, pencil-like Agena, was scheduled to fly at precisely 10:00 a.m. EST. Meanwhile, Schirra—who was struggling to give up smoking—lit up a cigarette during the ride to Pad 19. He felt, wrote Stafford, that “he could survive a twenty-four-hour flight without getting the shakes.” At length, General Dynamics launch manager Thomas O’Malley pressed the firing button for the Atlas-Agena at 10:00 a.m., and the first half of the mission got underway.
Or so it seemed.
There seemed little reason to doubt that the Agena would fly perfectly. The countdown had gone well. The Agena had a heritage of 140 previous flights since 1959, and its reliability was very good. It would separate from the Atlas high above the Atlantic Ocean, then fire its engine over Ascension Island to boost itself into orbit. Finally, at 11:41 a.m., Schirra and Stafford would ride their Titan into space to initiate the rendezvous.
Almost immediately after the Atlas-Agena lifted off, things started to go catastrophically wrong. It would appear that the Agena separated properly from its carrier rocket, but seemed to “wobble” a little, despite the efforts of its attitude-control mechanism to steady it. Right on time, its engine flared to life…and nothing more was heard. It had reached an altitude of about 150 miles (240 km) and was 500 miles (800 km) downrange of the Cape. Fourteen minutes after liftoff, specialists at the Bermuda radar station expected to receive tracking. They saw nothing, save the signatures of five large fragments.
Out at Pad 19, Schirra and Stafford were listening to the updates and were puzzled. “Maybe it’s the tracking station,” Schirra speculated. “Let’s wait for Ascension Island.” Their countdown was held, but at length Ascension, too, saw nothing. Later, the Carnarvon station in Australia saw nothing, and the assumption had to be made that the target vehicle had been lost. Subsequent investigation revealed that the Agena had exploded, due to a pre-launch change in the oxidizer feed sequence protocol. If it represented a failure with the vehicle, the issue spelled trouble for Project Gemini, which depended upon the Agena as its primary rendezvous target. In the meantime, a disappointed Schirra and Stafford were extracted from Gemini VI and headed off into town with Chief Astronaut Al Shepard and backup crewman John Young.
“Boys,” Shepard told them, “what we need is a good party!”
A new Agena would not be ready until early 1966, but a perfect alternative lay on the horizon. Immediately after the Agena’s loss, Frank Borman overheard a conversation between McDonnell officials Walter Burke and John Yardley: the former suggested launching Gemini VII as Schirra and Stafford’s “new” docking target. A study of sending Geminis up in quick succession had been done months earlier and seemed ideal, but for one thing. Burke sketched his idea onto the back of an envelope, but Borman doubted the practicality of installing an inflatable cone onto the end of Gemini VII to permit a physical docking. Several senior NASA managers, including George Mueller and Charles Mathews, dismissed the entire idea, since it would require the launch of both Geminis within an impossibly tight two-week period.
Others thought it could be done. Joseph Verlander and Jack Albert proposed stacking a Titan II and placing it into storage until another had been assembled. The Titan’s engine contractor, Aerojet-General, had stipulated that the vehicle must remain upright, but this could be achieved and the rocket kept on the Cape’s disused Pad 20. Immediately after the first Gemini’s launch from Pad 19, the second Titan could be moved into position and sent aloft within a week. The plan, however, carried little appeal and received little enthusiasm, with most attention focused on swapping the lighter Gemini VI for the heavier Gemini VII, thereby making good of a bad situation by using the Titan II already on the pad to fly Borman and Lovell’s 14-day mission.
Over the following days, as this was discussed in the higher echelons of NASA management, it became evident that if the two spacecraft were swapped, the earliest that Borman and Lovell could be launched would be 3 December 1965. However, if the Gemini VII spacecraft was too heavy for Gemini VI’s Titan, a delay until around 8 December would become necessary to erect the more powerful Gemini VII Titan. It was then envisaged to launch Schirra and Stafford on their rendezvous mission with another Agena sometime in February or early March 1966.
As these plans crystallized, Burke and Yardley posed their joint-flight idea to senior NASA officials, who found few technical obstacles, with the exception that the Gemini tracking network might struggle to handle two missions simultaneously. At first, Flight Director Chris Kraft thought they were out of their minds, but after consulting his control team and Deke Slayton, the head of Flight Crew Operations, relented. The prospects for Burke and Yardley’s plan steadily brightened when it became clear that the heavy Gemini VII—which, after all, was intended to support a mission seven times longer than Gemini VI—could not be lofted into orbit by Schirra and Stafford’s Titan II: the booster lacked the necessary impulse. Yet the question of tracking two vehicles at the same time remained.
Then, another possibility was aired. Could the tracking network handle the joint mission if Gemini VII were regarded as a “passive” target for Gemini VI? Borman and Lovell would launch first and control of their flight would proceed normally as Gemini VI was prepared to fly. As soon as controllers were sure that Gemini VII was operating satisfactorily, they would turn their attention to launching Gemini VI; in the meantime, Borman and Lovell’s flight would be treated like a Mercury mission, wrote Deke Slayton, “where the telemetry came to Mission Control by teletype, letting the active rendezvous craft have the real-time channels that were available.” This mode would continue until “Gemini VI-A”—renamed to distinguish it from the original Agena-based mission—had completed its tasks and returned to Earth. After Schirra and Stafford’s splashdown, Borman and Lovell would again become the focus of the tracking network.
Before NASA Headquarters had even come to a decision, the rumor mill had already informed the press, some of whom reported the possibility of a dual-Gemini spectacular. On 27 October, Administrator Jim Webb and his senior staff discussed the idea and issued a proposal for the joint flight to the White House. He informed President Lyndon B. Johnson that, barring serious damage to Pad 19 after the Gemini VII launch, Schirra and Stafford’s Titan could be flown within days to rendezvous with Borman and Lovell. Johnson, residing at his ranch in Austin, Texas, approved the plan on 28 October, and his press secretary announced it would fly in January 1966. At NASA, however, December 1965 was considered more desirable.
As October turned to November, preparations gathered pace. Gemini VI-A’s Titan was destacked and placed in bonded storage under plastic covers, and the heavy-lift Titan for Gemini VII was erected in its place. Pad Leader Guenter Wendt’s first reaction when he saw the short, nine-day Gemini VI-A pad schedule was “Oh, man, you are crazy!” Although Schirra and Stafford’s mission would essentially not change, that of Borman and Lovell was slightly adjusted to circularize its orbit and mimic the Agena’s flight path as closely as possible. Yet their own mission was fraught with great risk.
Since their assignment to Gemini VII, Borman and Lovell had been intensely focused on their primary objective: to spend 14 days in space, thereby demonstrating that astronauts could physically and psychologically withstand a maximum-length trip to the Moon and back. The results from the two previous long-duration flights, Gemini IV and Gemini V, had been mixed. Jim McDivitt and Ed White had returned fatigued after four days, while Gordo Cooper and Pete Conrad had hardly enjoyed their eight days sitting in an area the size of the front seat of a Volkswagen Beetle. Sleeping in shifts of four or five hours apiece had proven impractical, Borman and Lovell learned, so they resolved to sleep and work together. Moreover, they felt that their “work” time would not benefit from a rigid plan, opting instead for a broader outline which they could adapt in orbit.
At 2:30 p.m. EST on 4 December 1965, Gemini VII roared into orbit. “We’re on our way, Frank!” yelled Lovell as the Titan rolled and pitched in its ascent trajectory, achieving orbit five and a half minutes later. After a station-keeping exercise with the Titan, they settled down to eight days of experiments, ahead of the launch of Gemini VI-A and the rendezvous. As the flight wore on, conditions became increasingly less comfortable, with both men complaining of stuffy noses and burning eyes. The cabin, Borman reported, was too warm. Removing their suits helped, yet even that had been a matter of some debate on the ground.
Days earlier, on 29 November, Bob Gilruth had requested approval from NASA Headquarters for the astronauts to remove their suits after the second sleep period and only don them at critical junctures, such as rendezvous and re-entry. By the time Gemini VII launched, the plan had been amended slightly: One of them had to be suited at all times, but the other could remove his garment for up to 24 hours. Both men, however, had to be fully-suited for rendezvous and re-entry. Still, the intense discomfort was there and, as the mission wore on with no major issues, the rationale behind the one-suit-on/one-suit-off decision became unsupportable.

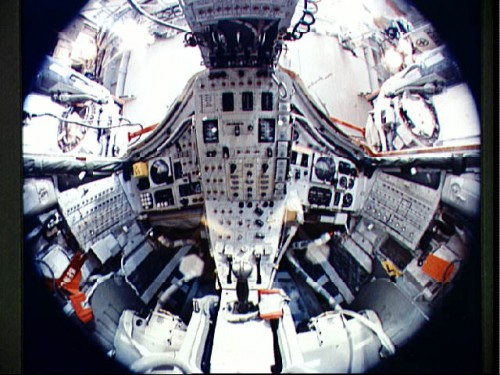

Even with his suit unzipped and gloves off Borman sweated heavily, while the unsuited Lovell remained dry. After 24 hours, Lovell asked to sleep unsuited, to which Borman agreed, despite his own discomfort. Lovell, the larger of the two, had more difficulty getting out of his suit in the confined cabin and, although he donned some lightweight flight coveralls for a few minutes, he removed them just as quickly, due to the intense warmth.
After four days of this torment, Borman asked the flight controller on the Coastal Sentry Quebec tracking ship to ask Chris Kraft about the chances of both men taking off their suits. Capcom Gene Cernan discussed the request, firstly, with Deke Slayton, before approaching Kraft, but there was little option but to ask Lovell to put his suit back on so that Borman could remove his suit. Concern was mounting, however, about how alert the astronauts would be for the Gemini VI-A rendezvous if they were so hot and uncomfortable. Bob Gilruth certainly favoured both men having their suits off at the same time, and Chuck Berry, looking at the biomedical data, saw clear signs that blood pressures and pulse rates were closer to normal when Borman and Lovell were unsuited. Eventually, on 12 December—the very day that Schirra and Stafford were due to fly—NASA Headquarters finally agreed to allow the Gemini VII crew to remove their uncomfortable suits.
The astronauts’ patience was, however, tried on a number of occasions—most notably when a urine bag broke in Borman’s hands. “Before or after?” asked Chuck Berry. When Borman affirmed it was after, Berry replied “Sorry about that, chief.” After the flight, Lovell would describe their living and working conditions in a similar manner to Cooper and Conrad: like sitting in a men’s toilet for a fortnight without access to a shower. This did not bode well for the physicians. After splashdown, one of their tasks was to examine calcium loss in space, and they would be obliged to not only sift through Borman and Lovell’s liquid and solid waste, but also microscopically analyze the contents of their underwear.
In the meantime, Wally Schirra and Tom Stafford’s Gemini VI-A Titan had been raised on Pad 19 on 5 December. A computer problem quashed hopes to launch on the 11th, but the prospects were bright for a second attempt the next day. Launch was scheduled for six seconds past 9:54 a.m., and the countdown clock ticked perfectly toward an on-time liftoff. Precisely on cue, the Titan’s first-stage engines ignited with a high-pitched whine.
Then, after less than 1.2 seconds, they shut down.
Instantly, Schirra, his hand clasping the D-handle to fire their ejection seats, faced a life-or-death decision. The mission clock on the instrument panel had started running—as it would in response to the vehicle lifting off—but he could feel no movement. If the Titan had climbed even a few inches, there was a very real risk that its full load of volatile propellants could explode in a holocaust. In his autobiography, Stafford remembered vividly the moment that the behemoth came alive and, just as vividly, the instant at which its roar ceased. “The sound of the engines died even though the clock started and the computer light came on, both indications that we had lifted off,” he wrote. “But I could feel that we hadn’t moved. More important, there was no word from [Capcom] Al Bean confirming liftoff, which was critical.” In fact, it was the feeling of stillness that convinced Schirra not to risk ejecting.
Kenneth Hecht, head of the Gemini escape and recovery office, was surprised that he did not eject, but in reality, neither Schirra nor Stafford had much confidence in the seats and instinctively desired to remain with their “bird” as long as possible. Stafford felt that the 20G acceleration of an ejection would have left him with, at best, a cricked neck for months. Moreover, there was a very real risk of death.
Yet Schirra would not have put them in any undue danger. “If that booster was about to blow,” he said, “if we really had a liftoff and settled back on the pad, there was no choice. It’s death or the ejection seat.”
The second part of this article will appear tomorrow.
