‘More Confidence Than Ever’: Remembering Apollo 9, Launched 50 Years Ago (Part 2)

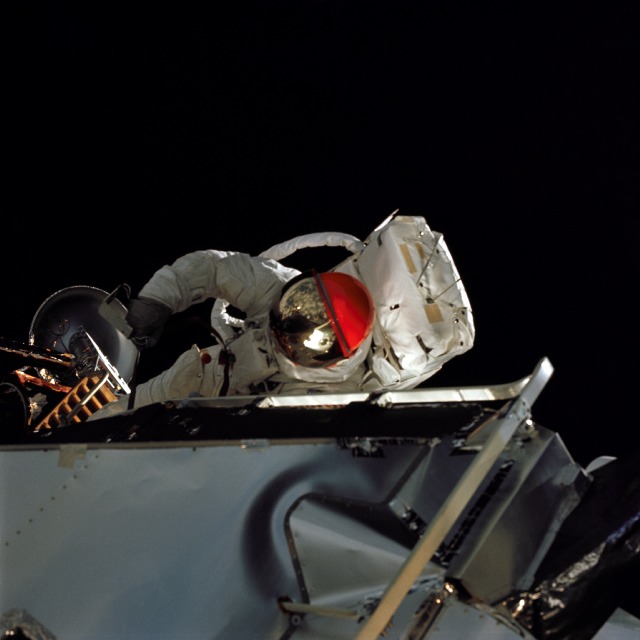

Balanced on the Lunar Module porch – with one of the footpads visible ‘below’ him – Rusty Schweickart puts the lunar suit through its paces on Apollo 9, 50 years ago, this month. Photo Credit: NASA

Early on 5 March 1969, two men floated through a tunnel from their command ship into a spider-shaped vehicle whose descendants would soon carry astronauts to the surface of the Moon. Apollo 9 was not destined to go to the Moon, or even depart Earth orbit, and yet, as noted in last weekend’s history article, its criticality to the goal of planting American bootprints in the lunar dust before the end of the 1960s cannot be underestimated.

During their 10 days circling Earth, the crew of Jim McDivitt, Dave Scott and Rusty Schweickart would prove for the first time that Apollo—as a complete spacecraft, with its Command and Service Module (CSM) and Lunar Module (LM)—was capable of performing as advertised. However, no sooner had they begun work, the first problem reared its head.

Pictured during training in February 1969, astronauts Jim McDivitt (foreground) and Rusty Schweickart would put the Lunar Module through its paces. They would test its digital autopilot, its descent and ascent engines and its overall controllability. Photo Credit: NASA

When McDivitt and Schweickart floated through the connecting tunnel into the LM, their actions to prepare it for its first manned flight were honed to perfection by hundreds of hours of training. At 6:15 a.m. EST, Schweickart entered its cramped cabin—about the size of a broom cupboard, dominated by the large, cylindrical ascent engine cover in the middle of its “floor”—and was followed by McDivitt less than an hour later. Both men agreed that the whirring systems, particularly the environmental control unit, were noisy. By 8 a.m., the first major step in preparing their LM for independent flight was completed when its four spidery legs were swung away from the body.

Time, however, was not on their side, and shortly thereafter McDivitt was forced to admit to Mission Control that they were behind schedule. The reason: Schweickart, two days into his first space flight, was sick.

At the time of Apollo 9, “Space Adaptation Syndrome” was virtually unknown, and the bulk of military fighter and test pilots in the astronaut corps tended not to report it, lest their susceptibility impair their chances of being assigned another mission. “It had been accepted,” wrote Gene Cernan in his autobiography, The Last Man on the Moon, “that everyone felt woozy on getting up there and…maybe you might even toss your cookies a couple of times, but you sure as hell didn’t tell anyone…and neither did your crewmates.”

McDivitt’s crew was determined to avoid such problems and, upon reaching orbit, tried not to make sudden head movements and took the anti-nausea drug Dramamine.

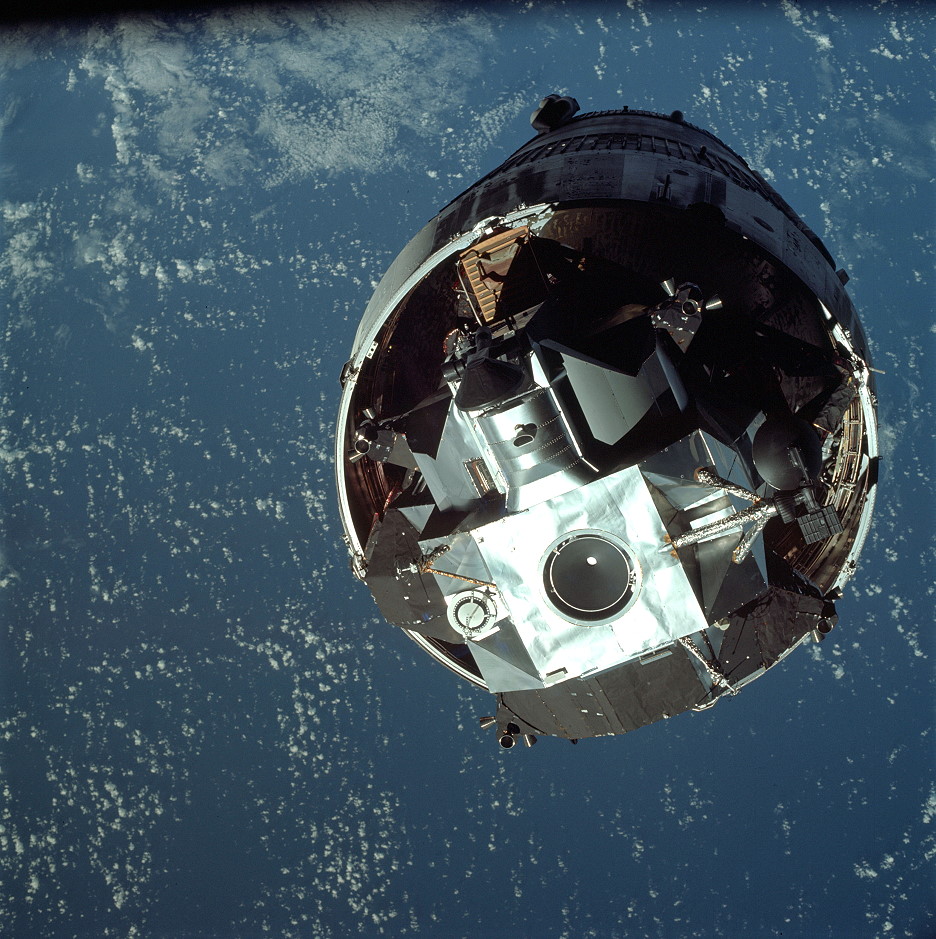

View of the Saturn V’s S-IVB third stage, with the Lunar Module (LM), nicknamed “Spider”, visible within. Photo Credit: NASA, via Joachim Becker/SpaceFacts.de

Still, issues of dizziness plagued them for the first couple of days. Things really got bad on the 5th, when Schweickart suffered a bout of nausea as soon as he awoke, then felt increasingly queasy as he donned his space suit in the weightless cabin. As Lunar Module Pilot (LMP), he performed his initial duties, flipping switches to begin powering up the lander’s systems, but his condition steadily worsened. As fellow astronaut Buzz Aldrin explained in his book, Men from Earth: “Rusty…experienced brief vertigo as he floated up through the tunnel into the LM, and ended up staring down at the lander’s flight deck.” When McDivitt, who had also suffered from episodes of dizziness, joined his crewmate, Schweickart vomited again.

It was impossible to conceal Schweickart’s condition from ground controllers. McDivitt knew that the timeline called for Schweickart to make an Extravehicular Activity (EVA) on 6 March, putting the new Apollo lunar space suit through its paces for the first time. “Throwing up inside a pressure suit,” explained Deke Slayton, “would not only be unpleasant as hell, it might be fatal.” And another problem lurked in the shadows. The very act of admitting that one of them was sick, in Gene Cernan’s words, “was to admit a weakness, not only to the public and the other astros, but also to the doctors, which would give them reason to stick more pins in us”.

For the first time in the Apollo program, the Command and Service Module (CSM) and Lunar Module (LM) were flown by humans, autonomously, on the Apollo 9 mission. Photo Credit: NASA, via Joachim Becker/SpaceFacts.de

Apollo 9 marked the first time that two American manned craft would rendezvous, dock and transfer crews, which demanded individual names for them. There were, admittedly, formal international designations—the main spacecraft was “1969-018A” after reaching orbit, the Saturn V rocket’s S-IVB final stage became “1969-018B”, crew-carrying ascent stage of the LM became “1969-018C” and its discarded descent stage became “1969-018D”—but those would not do. Names for the two manned craft, were definitely needed. Frivolous or “sensitive” names were frowned upon by NASA. The ungainly appearance of the LM and the conical profile of the CSM made the choice of names an easy one for McDivitt, Scott and Schweickart: The former would be called “Spider” and the latter “Gumdrop”. On 5 March 1969, aboard Spider, concern mounted about how to tackle Schweickart’s EVA. In a bid to preserve his comrade’s privacy, McDivitt requested a closed-loop medical consultation with Mission Control, and it was decided that a planned spacewalk from Spider over to Gumdrop was too risky.

The chances of Schweickart suffocating if he threw up again, inside his suit, did not bear thinking about. The plan called for him to spend two hours outside, exiting the LM and working his way by handrails over to the open hatch of Gumdrop, where a fully-suited Dave Scott would conduct a “stand-up” EVA to observe. Schweickart would then return to the lunar module. The purpose of this test, in addition to evaluating the suit, was to show that a returning lunar crew could spacewalk to the CSM in the event of their being unable to pass through the docking tunnel.

On the “D” mission, which later became Apollo 9, astronauts Jim McDivitt, Dave Scott and Rusty Schweickart would put the Lunar Module (LM) through its paces for the first time on a piloted space mission. Photo Credit: NASA

Instead, a comparatively straightforward opening of the hatch for 45 minutes, during orbital daylight, was advocated. By thus exposing themselves to vacuum, but remaining inside Spider, McDivitt and Schweickart could conduct at least some tests of the suits in the required conditions. As managers reprioritized the EVA, the lingering question of how much information to release to the media had worked its way to NASA Administrator Tom Paine. Many astronauts were furious and one even declared that he would “never tell the ground a goddamn thing from up there”. Eventually, Paine concurred that the confidentiality of the Schweickart tape should be respected.

If the spacewalk happened—and early on 5 March it seemed unlikely—the astronauts’ third day in space was far too busy for them to worry about it. Their packed schedule of engineering and other objectives got underway at 9:28 a.m., with a five-minute televised transmission from inside Spider, showing its instruments and displays, various internal features and the faces of McDivitt and Schweickart.

Rusty Schweickart’s EVA sought to determine the effectiveness of the lunar surface suit in a vacuum. Unlike previous suits, it was completely self-contained. Photo Credit: NASA

Three hours later, McDivitt executed the first firing of the descent engine. In addition to evaluating the combined spacecraft’s handling characteristics, the six-minute burn demonstrated the effectiveness of the lunar module’s digital autopilot and how the descent engine behaved at full throttle. McDivitt was impressed by the descent engine’s performance. Only seconds after starting the burn, he had yelled, “Look at that [attitude] ball; my God, we hardly have any errors.” Twenty-six seconds into the firing, those errors remained virtually non-existent and the commander even took a few seconds for a bite to eat.

Schweickart awoke on 6 March, apparently much recovered, no longer nauseous or pale, and McDivitt, notwithstanding the reservations of ground controllers, decided to press ahead with his scheduled EVA onto the lunar module’s porch. The cabin was depressurized, although McDivitt found that he had to exert more force than expected to turn the handle and swing the waist-high hatch inward. Clad in a bulky suit virtually identical to that which crews would use on the Moon and anchored by means of a tether, Schweickart began moving onto the porch a little over 14 minutes later. In essence, he was now a miniature spacecraft in his own right. “What was important about this EVA,” wrote Deke Slayton, “was that the lunar pressure suit was completely self-contained. All the suits used on the Gemini EVAs had relied on the spacecraft to provide oxygen and communications. The consumables and communication equipment for the lunar suit…were all in [the] backpack.” With the satisfying gurgle of water coolant and a stable pressure indicator, Schweickart lost no time. As soon as he was outside, he secured his feet in a pair of so-called “golden slippers”—boot restraints attached to Spider’s porch—and gained his bearings before embarking on his first task: to observe, photograph and retrieve thermal samples from the exterior of the LM.

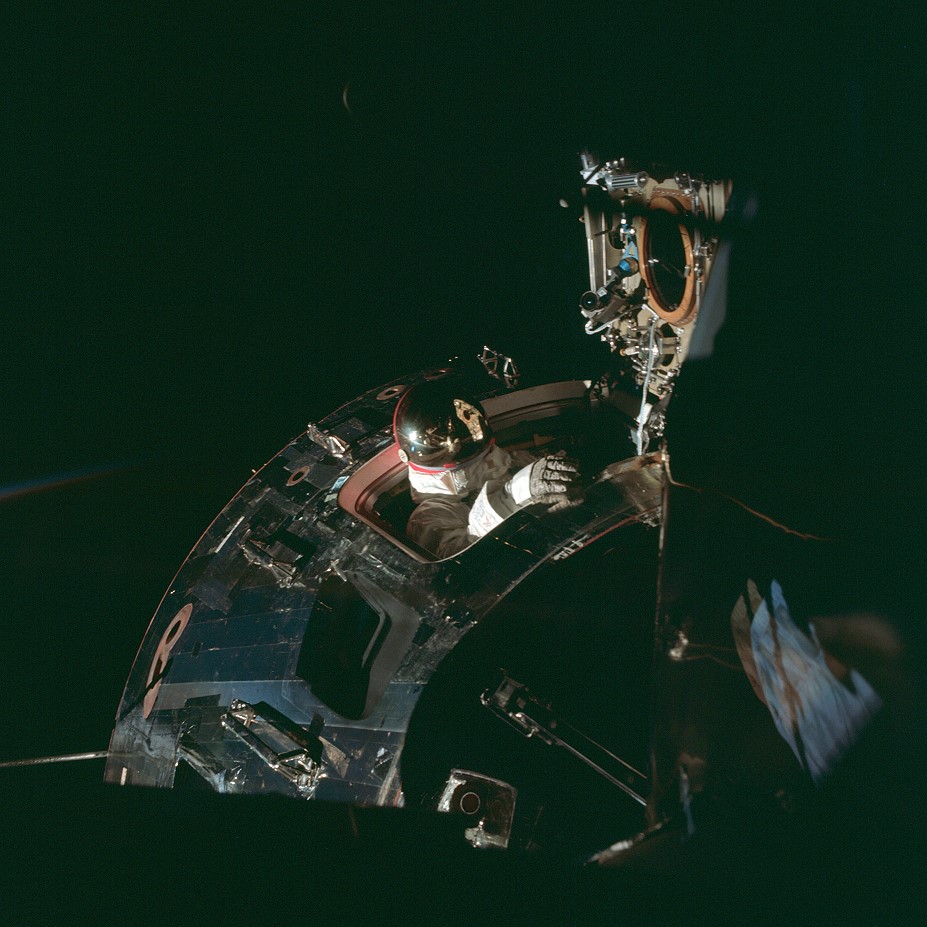

Dave Scott pokes his helmeted head out of the Command and Service Module (CSM) side hatch during joint operations with the Lunar Module (LM). Photo Credit: NASA, via Joachim Becker/SpaceFacts.de

By now, Dave Scott, clad in a slightly different suit that was dependent on Gumdrop’s systems for life support, had opened his hatch for a “stand-up” EVA. Next, Schweickart—joking at his own sandy hair by aptly nicknaming himself “The Red Rover”—began his first abbreviated attempt to evaluate his ability to move and control his body in the lunar suit. His planned transfer to Gumdrop and back had been cancelled, but he was able to obtain photography of Scott’s activities and imagery of the exteriors of both spacecraft. At length, he returned inside Spider and Scott retreated to Gumdrop.

Still to be tested were Spider’s systems when flying independently of the CSM, including the rendezvous radar, descent and ascent engines, guidance computers and the docking mechanism. Early on 7 March, keen to get an early start and get ahead on their timeline, McDivitt and Schweickart shimmied down the tunnel into the lander and sealed the hatches between themselves and Gumdrop. At the appointed time, Scott flipped a switch to release Spider…and nothing happened. The latches, it seemed, had “hung-up” After several more tries, in which he repeatedly flipped the switch back and forth, Scott was successful and the two craft separated cleanly. After performing a brief fly-around to ensure that all was well, Scott pulsed his thrusters to back away.

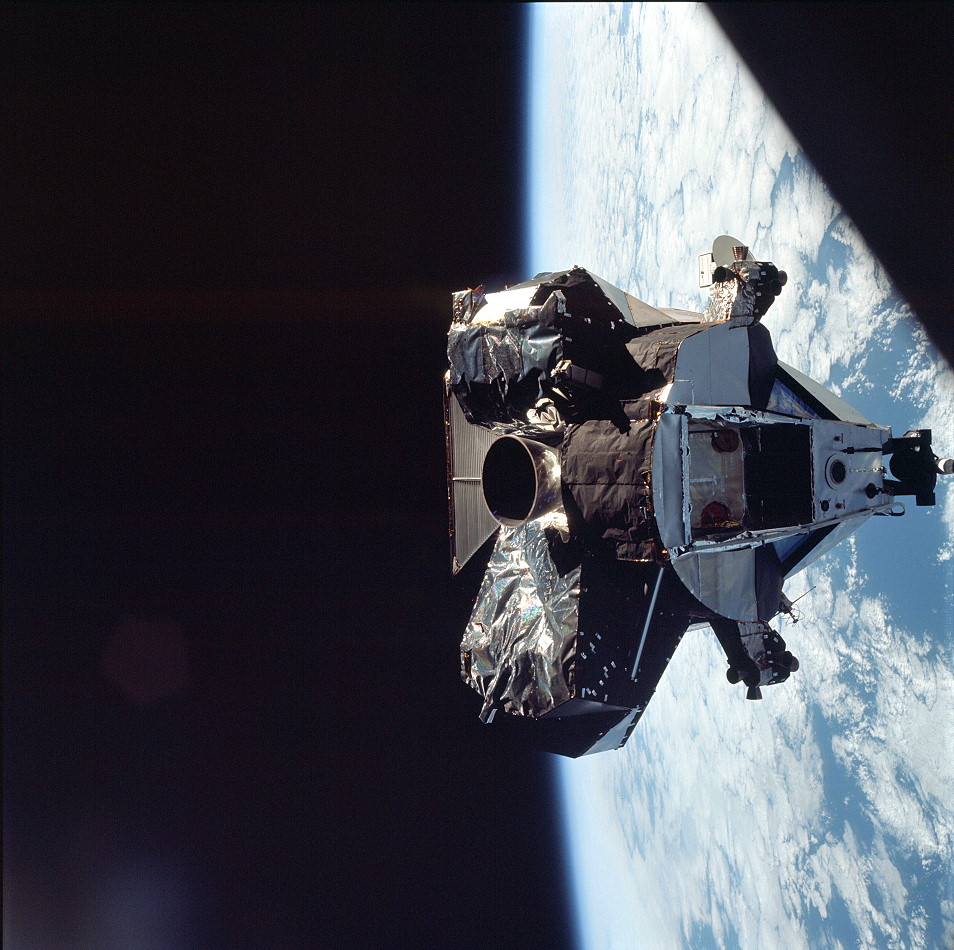

View of the ascent engine bell at the base of Lunar Module (LM) Spider, during rendezvous operations with Command and Service Module (CSM) Gumdrop. Photo Credit: NASA, via Joachim Becker/SpaceFacts.de

From his station on the left-hand side of the LM, McDivitt performed a pitch maneuver, then yawed, to enable Scott to verify that Spider’s four legs were properly extended. Forty-five minutes later, McDivitt fired the descent engine to insert Spider into a circular orbit “above” Gumdrop. As he throttled the engine for the first time, it ran smoothly until it achieved 10 percent thrust, but when advanced to 20 percent both astronauts noted a peculiar chugging noise. McDivitt paused and resumed and was delighted that the strange groaning did not recur, even when he throttled up to 40 percent.

Next, the pyrotechnics were fired to jettison the descent stage and the ascent engine blazed silently to life to place Spider into an orbit “below” and “behind” Gumdrop. The kick affected more than just the crew: As the two sections of the vehicle separated, a small cloud of debris hit the ascent stage and knocked out its strobe tracking beacon. In accordance with the laws of celestial mechanics, the lander, being in a lower orbit, began to gain on its quarry. A few hours later, the first all-up demonstration of the lunar module in flight was completed in spectacular fashion, with Scott lining up and McDivitt executing a perfect docking. During their 6.5-hour independent flight, the two men aboard Spider had cleared another obstacle on the road to the Moon.

Splashing down on 13 March 1969, the achievement of Apollo 9 and its intrepid crew brought the lunar landing inexorably closer. Publicly, and within NASA, an enormous groundswell of support rose and it was even muttered that the next flight, Apollo 10, should be retasked with the landing, rather than its mandate of a full dress rehearsal in lunar orbit. This was both unwise and impractical, but highlighted the “Go Fever” prevalent at the time. “Whatever the decision,” wrote Time magazine in late March, “there is now more confidence than ever that U.S. astronauts will be walking on the surface of the Moon this summer.”

Never were truer words written.

.

.

.
